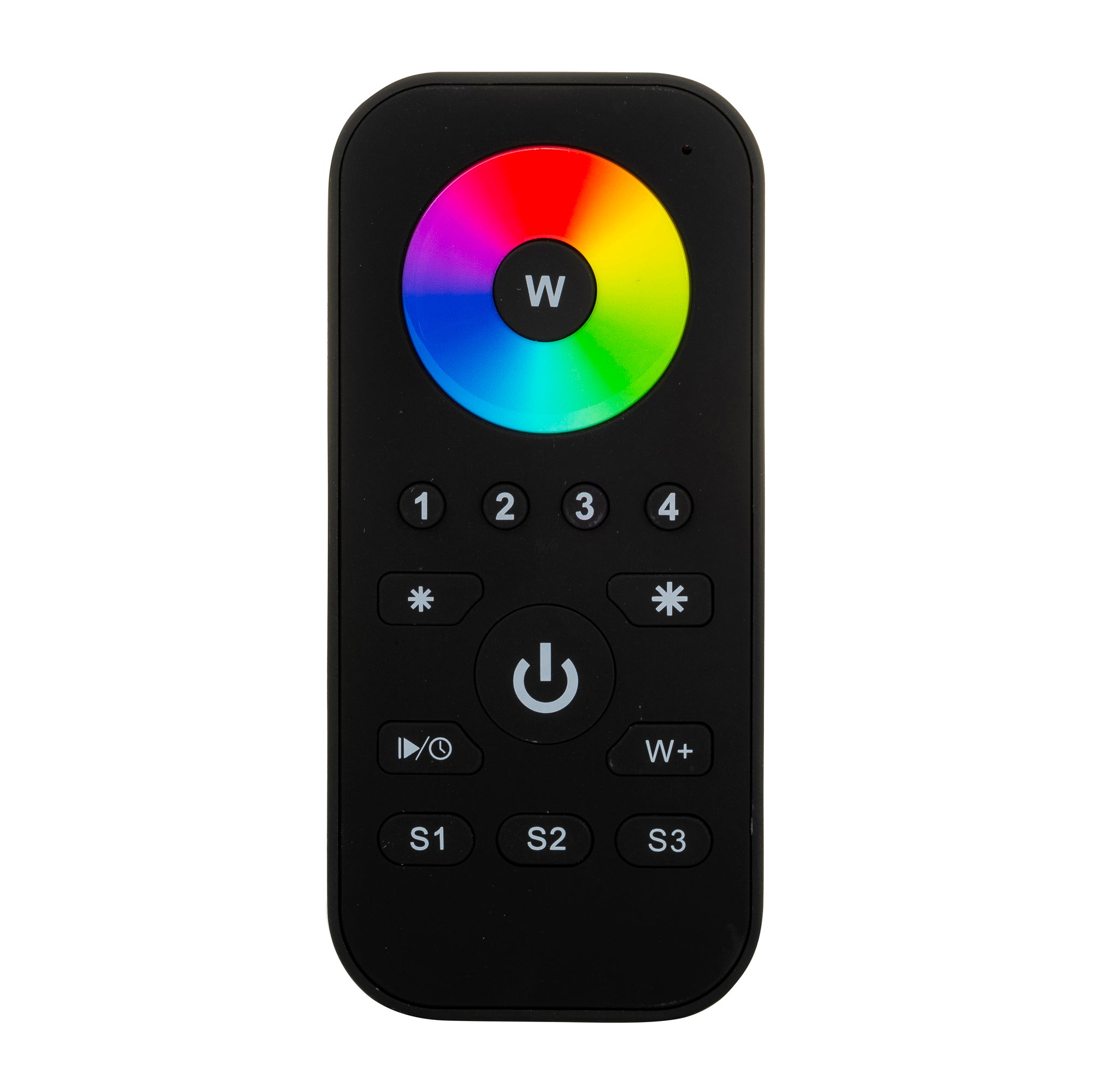

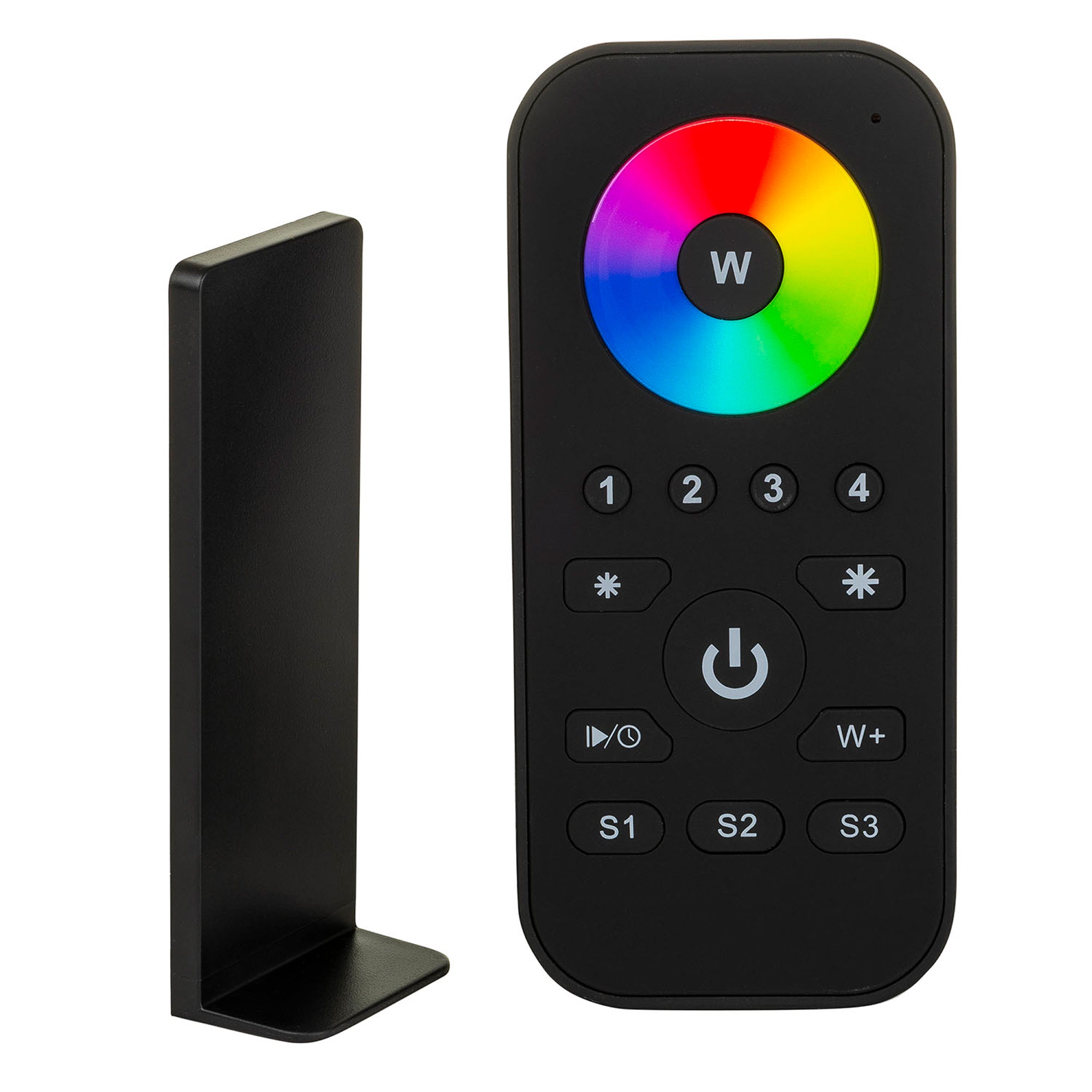

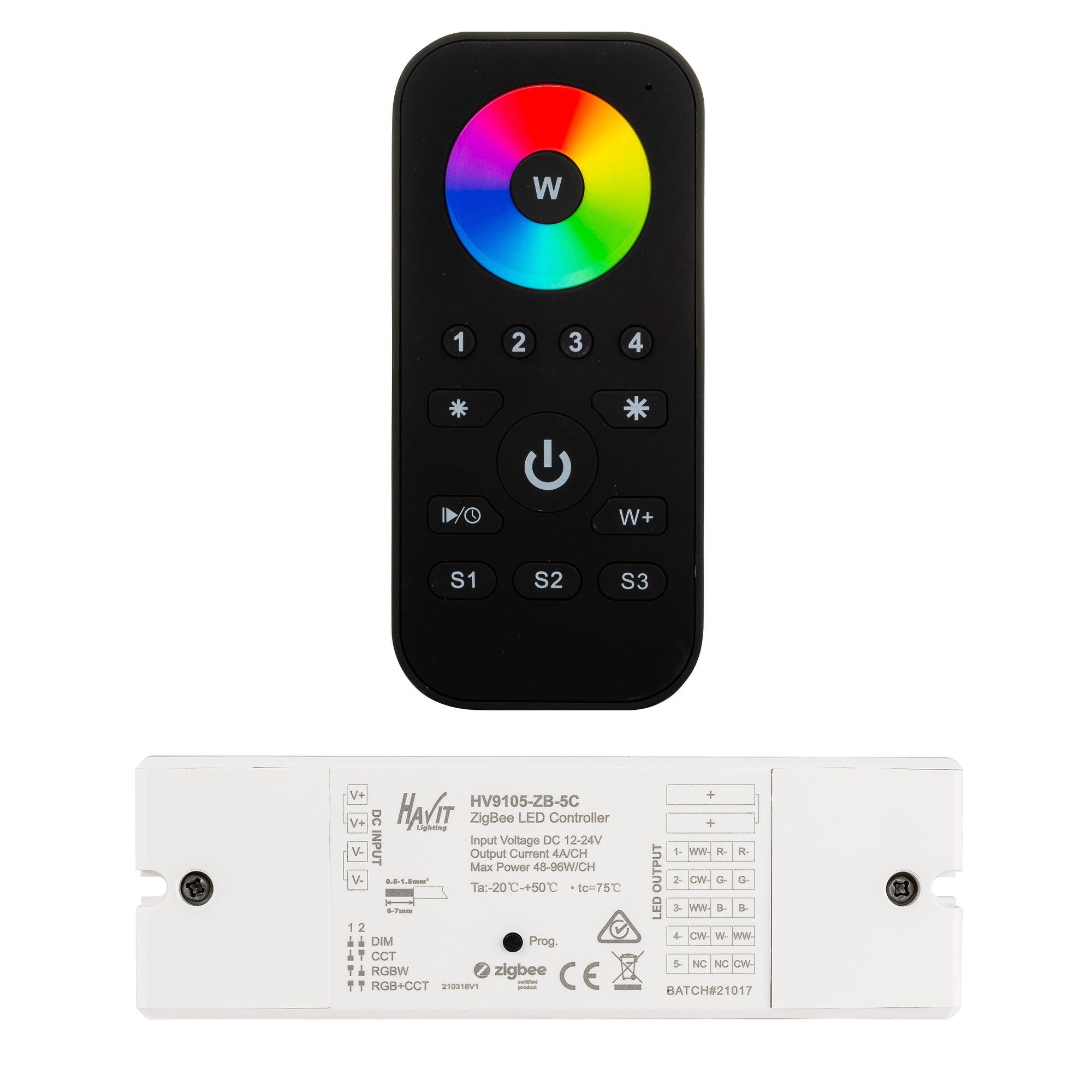

HV9102-ZB-RGBW+5C - RGB or RGBW Remote Controller + Zigbee Receiver

• RGB or RGBW Remote Controller and Zigbee Receiver
• For use with RGB, RGBC or RGBW lighting or LED strip.
• 4 x Zones
• 3 x Programmable Scenes

• Dimming range: 0.1-100%
• Operation Frequency: 2.4GHZ
• IP Rating: IP20
• To be used with Zigbee Hubs, Eg Philips Hue

• Remote Input Voltage: 4.5v (3x AAA)
• Receiver Input Voltage: 12-24v DC
• Output Power: 5CH x 4A (12v DC = 240W | 24v DC = 480W)

• 3 Years replacement warranty

Download

HV9102-ZB-RGBW Installation Instructions

HV9105-ZB-5C Installation Instructions
