RGBC/W LED Strip Controllers

Filter
    24 products

    24 products

    HV9101-E4S - RGBC or RGBW LED Strip Controller
    • RGBC/W LED Strip Controller
    • For use with RGBW or RGBC LED strip
    • Input voltage: 12V DC or 24v DC
    • Output power: 12v DC 144w / 24v DC 288w
    • 3 years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Pages 295-296

    Data Sheet

    Installation Instructions

    New
    HV9101-E5S - RGBCW LED Strip Touch Panel
    • RGBCW LED Strip Touch Panel
    • 4 scene presets
    • Input voltage: 12V DC or 24v DC
    • Output power: 12v DC 192w / 24v DC 384w
    • 3 years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Pages 295-296

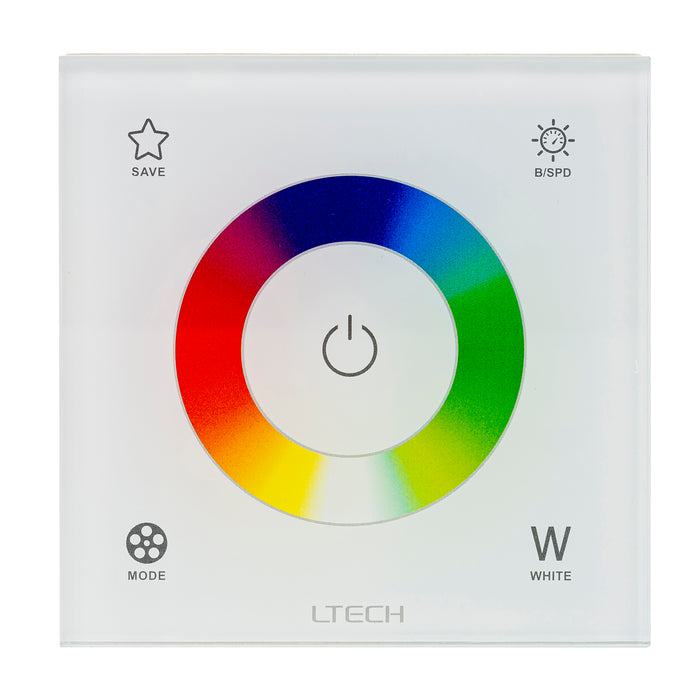

    HV9101-EX4S - RGBC/W RF LED Strip Touch Panel Controller
    • RGBC or RGBW touch panel controller
    • For use with LED strip
    • Input voltage: 240v
    • Output signal: 2.4ghz + DMX512
    • Transmitting range: 30m approx
    • Must be used with HV9103-F4-5A
    • 3 years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Pages 289-290

    Data Sheet

    Installation Instructions

    HV9101-EX5S - RGBCW LED Strip Touch Panel
        • RGBCW LED Strip Touch Panel
        • Ability to control up to 4 zones
        • Input voltage: 240v AC
        • Must be used with HV9103-F5-DMX-4A
        • 3 years replacement warranty (items ordered after 01/01/22)
        • 2022 Catalogue Pages 305-306




    HV9101-EX8S - RGBC or RGBW Zone RF LED Strip Touch Panel Controller
    • RGBC/W touch panel controller
    • For use with RGBC or RGBW LED strip
    • Ability to control up to 4 separate zones
    • Input voltage: 240v
    • Output signal: 2.4ghz + DMX512
    • Transmitting range: 30m approx
    • Must be used with HV9103-F4-5A
    • 3 years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Page 291-292

    Data Sheet

    Installation Instructions

    HV9101-ZB-RGBWTP - RGBW Zigbee LED Touch Panel
    • RGBW Zigbee LED Touch Panel
    • Compatible with Zigbee Receivers
    • Input Voltage: 240v AC
    • Three scene selections
    • Operation Frequency: 2.4GHZ
    • 3 years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Page 285

    Data Sheet

    Installation Instructions

    HV9102-2819RGBW - RGBC/W 6 Zone LED Strip Controller
    • RGBC or RGBW LED Strip Remote Controller
    • Can control up to 6 zones
    • IP rating: IP20
    • Input voltage: 4.5v (3 x AAA Battery)
    • Must be used with HV9105-1009-5C

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 297-298

    HV9102-2858Z4-5C - RGBCW 4 Zone LED Strip Controller
    • RGBCW LED Strip Controller
    • Can control up to 4 zones
    • 4 Programmable Scenes
    • IP rating: IP20
    • Input voltage: 4.5v (3 x AAA Battery)
    • Must be used with HV9105-1009-5C

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 297-298


    HV9102-M4+M4-5A - RGBC/W LED Strip Remote Controller
    • RGBC/W remote controller
    • For use with RGBC or RGBW LED strip
    • 3v Battery (CR2032)
    • Output signal: 2.4ghz
    • Transmitting range: 30m approx
    • Input Voltage: 12v DC or 24v DC
    • Power: 12v DC 240w / 24v DC 480w

    • 2 years replacement warranty

    • 2022 Catalogue Pages 301-302

    Data Sheet

    Download

    Installation Instructions

    Download

    HV9102-Q4 - RGBC/W 4 Zone LED Strip Remote Controller
    • LED Strip Remote Controller
    • For use with RGBW or RGBC LED Strip
    • Can control up to 4 zones
    • IP rating: IP20
    • Input voltage: 3v (2 x AAA Battery)
    • Dimmable
    • Must be used with HV9103-F4-5A

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 299-300

    Data Sheet

    Installation Instructions

    HV9102-Q5 - RGBCW 4 Zone LED Strip Controller
    • RGBCW LED Strip Remote Controller
    • Can control up to 4 zones
    • IP rating: IP20
    • Input voltage: 3v (2 x AAA Battery)
    • Dimming Range: 5-100%
    • Must be used with HV9103-F5-DMX-4A

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 299-300

    Installation Instructions

    HV9102-V4 - RGBC/W LED Strip Remote Controller
    • RGBC/W remote controller
    • For use with LED strip
    • DC 3v battery (CR2032)
    • Output signal: 2.4ghz
    • Transmitting range: 30m approx
    • Must be used with HV9103-R4-5A

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 303-304

    Data Sheet

    Installation Instructions

    HV9102-V8 - RGBC/W Zone LED Strip Remote Controller
    • RGBW remote controller
    • For use with LED strip
    • Control up to 4 zones
    • DC 3v battery (CR2032)
    • Output signal: 2.4ghz
    • Transmitting range: 30m approx
    • Must be used with HV9103-R4-5A

    • 2 years replacement warranty

    • 2022 Catalogue Page 303-304

    Data Sheet

    Download

    Installation Instructions

    Download

    HV9102-ZB-RGBWREM - RGBW Zigbee LED Remote Controller
    • RGBW Zigbee LED Remote Controller
    • Compatible with Zigbee RGBW Receiver
    • Input Voltage: 4.55v DC (3x AAA batteries not included)
    • Operation Frequency: 2.4GHZ
    • 3 years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Page 286

    Data Sheet

    Installation Instructions

    HV9103-1009FAW - RF + WIFI 4 Channel LED Strip Receiver
    • Single Colour, CT, RGB + RGBW LED strip receiving controller
    • For use with LED strip
    • Can be used with both WIFI and RF
    • IP Rating: IP67
    • Input voltage: 12v DC or 24v DC
    • To be used with various HV9102 Models (see data sheet)
    • Load: 12v Max 240w | 24v Max 480w
    • 3 years replacement warranty (items ordered after 01/01/22)

    Data Sheet

    HV9103-R4-5A - LED Strip Receiver
    • LED strip recieving controller
    • For use with LED strip
    • Input voltage: 12v DC or 24v DC
    • To be used with HV9101 or HV9102 models
    • Power: 12v DC 240w / 24v DC 480w
    • 3 years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Pages 291-292

    Data Sheet

    Installation Instructions

    HV9104-LT-EBOX-AP - 2.4ghz Wireless Signal Repeater
    • Wireless LED Repeater
    • For use with LED strip
    • Input Voltage: 5v-24v DC
    • Signal: Wireless RF 2.4GHz
    • Works with HV9103-F4-5A Receivers

    • 3 years replacement warranty (items ordered after 01/01/22)

    Installation Instructions

    HV9105-WIFI-102-RGBW - RGBC/W WIFI LED Strip Controller
    • RGBC or RGBW WIFI controller
    • For use with LED strip
    • Control led strip through your WIFI
    • Input voltage: 12v DC or 24v DC
    • Power: 12v DC 144w / 24v DC 288w

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 307-308

    Data Sheet

    Installation Instructions

    HV9105-WIFI-104 - WIFI LED Strip Controller + Remote
    • WIFI controller
    • For use with LED strip
    • Control led strip through your WIFI
    • Input voltage: 12v DC or 24v DC
    • Power: 12v DC 192w / 24v DC 384w

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 307-308

    Data Sheet

    Installation Instructions

    New
    HV9105-WIFI-106 - WIFI LED Strip Controller + Remote
    • WIFI controller
    • For use with LED strip
    • Control led strip through your WIFI
    • Also supplied with Remote Control
    • Input voltage: 12v DC or 24v DC
    • Power: 12v DC 192w / 24v DC 384w
    • Weight: 70g

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 307-308

    Data Sheet

    Installation Instructions

    HV9105-ZB-RGBW - RGBW Zigbee LED Receiver
    • RGBW Zigbee LED Controller
    • Can be used with Amazon Alexa and Google Home
    • Input Voltage: 12v DC or 24v DC
    • Output Power: 4CH x 5A (12v = 240W / 24v = 480W)
    • Must be used suitable LED Driver
    • 3 Years replacement warranty (items ordered after 01/01/22)
    • 2022 Catalogue Page 287

    Data Sheet

    Installation Instructions

    HV9106-LT-704-5A - 0-1/10V RGBW LED Strip Controller
    • 0-1/10V LED strip controller
    • For use with RGBW LED strip
    • Input signal: 0-1/10v
    • Input voltage: 12v DC or 24v DC
    • Power: 12v DC 240w / 24v DC 480w
    • 2022 Catalogue Page 309-310

    Data Sheets

    Download

    Installation Instructions

    Download

    HV9107-LT-404-5A - Dali RGBC or RGBW LED Strip Controller
    • Dali RGBW LED strip controller
    • For use with RGBW LED strip
    • Input signal: Dali digital dimming signal
    • Output signal: 0-1/10v
    • Input voltage: 12v DC or 24v DC
    • Power: 12v DC 216w / 24v DC 432w

    • 3 years replacement warranty (items ordered after 01/01/22)

    • 2022 Catalogue Page 309-310

    Data Sheet

    Installation Instructions

    HV9109-LT-820-5A - DMX RGBC or RGBW LED Strip Controller
    • DMX LED strip controller
    • For use with RGBC or RGBW LED strip
    • Input signal: DMX512
    • Input voltage: 12v DC or 24v DC
    • Max Load Current: 5A X 4 Channel Max 20A
    • Max Output Power: 12v DC 240w / 24v DC 480w
    • Dimming Range: 0-100%
    • IP rating: IP20
    • 2 Years replacement warranty
    • 2022 Catalogue Page 311-312

    Data Sheet

    Download

    Installation Instructions

    Download
