Single Colour LED Controllers

• Single Colour LED Strip Controller
• For use with LED strip
• Input voltage: 12V DC or 24v DC
• Output power: 12v DC 144w / 24v DC 288w
• 3 years replacement warranty (items ordered after 01/01/22)
• 2021 Catalogue Pages 261-262

Data Sheet

Installation Instructions

• Single Colour LED Strip Controller
• For use with LED strip
• Input voltage: 12V DC or 24v DC
• Output power: 12v DC 72w / 24v DC 144w

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 293-294

Data Sheet

Installation Instructions

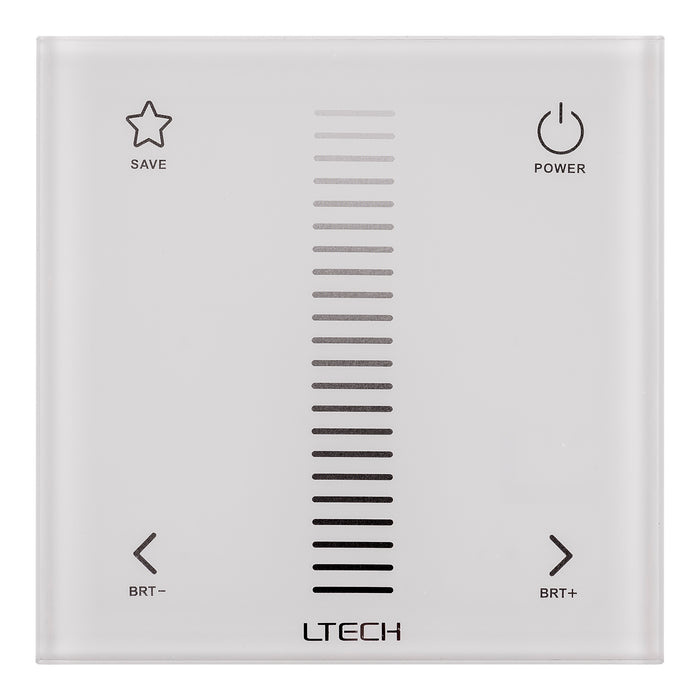

• Single Colour touch panel controller
• For use with LED strip
• Input voltage: 240v AC
• Output signal: 2.4ghz
• Transmitting range: 30m approx
• Must be used with HV9103-R4-5A
• 3 years replacement warranty (items ordered after 01/01/22)
• 2022 Catalogue Pages 289-290

Data Sheet

Installation Instructions

• Single colour touch panel controller
• For use with LED strip
• Ability to control up to 4 seperate zones
• Input voltage: 240v
• Output signal: 2.4ghz
• Transmitting range: 30m approx
• Must be used with HV9103-R4-5A

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Pages 291-292


Data Sheet

Installation Instructions

• Single colour controller
• For use with LED strip
• Input voltage: 240v
• Output signal: 2.4ghz
• Transmitting range: 30m approx
• Must be used with HV9103-R4-5A

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Pag 293-294

Data Sheet

Installation Instructions

• Single Coloured Zigbee LED Touch Panel
• Compatible with Zigbee Receivers
• Input Voltage: 240 AC
• Preset 25% 50% 75% 100% brightness
• Six scenes Presets
• Dimming range: 0.1-100%
• Operation Frequency: 2.4GHZ
• 3 Years replacement warranty (items ordered after 01/01/22)
• 2022 Catalogue Page 285

Data Sheet

Installation Instructions

• Single Colour LED Strip Remote Controller
• Can control up to 6 zones
• 6 Programmable Scenes
• IP rating: IP20
• Input voltage: 4.5v (3 x AAA Battery)
• Must be used with HV9105-1009-5C

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 297-298

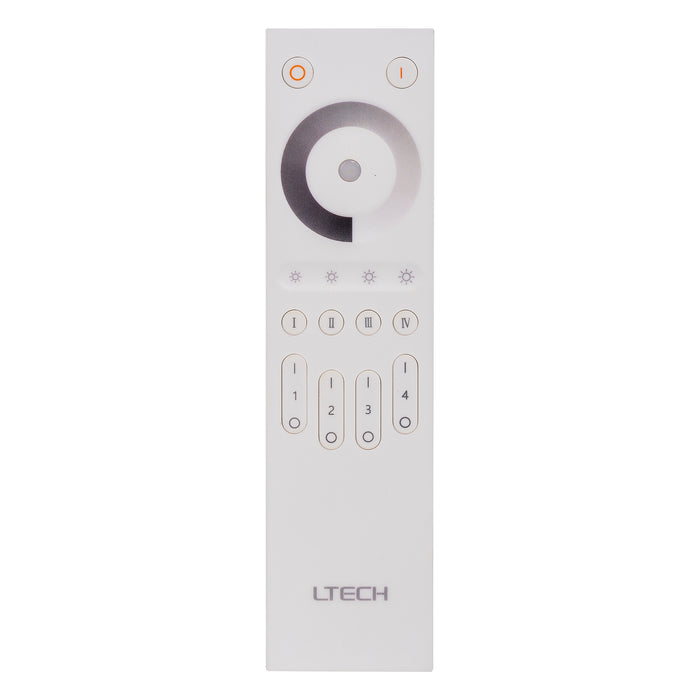

• Single colour remote controller
• For use with LED strip
• 3v Battery (CR2032)
• Output signal: 2.4ghz
• Transmitting range: 30m approx
• Input Voltage: 12v DC or 24v DC
• Power: 12v DC 240w / 24v DC 480w

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Pages 301-302

Data Sheet

Installation Instructions

• LED Strip Remote Controller
• For use with Single Colour LED Strip
• Can control up to 4 zones
• IP rating: IP20
• Input voltage: 3v (2 x AAA Battery)
• Dimmable
• Must be used with HV9103-F4-5A

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 299-300

Data Sheet

Installation Instructions

• Single colour remote controller
• For use with LED strip
• Control up to 4 zones
• DC 3v battery (CR2032)
• Output signal: 2.4ghz
• Transmitting range: 30m approx
• Must be used with HV9103-R4-5A

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 303-304

Data Sheet

Installation Instructions

• Zigbee LED Remote Controller
• Compatible with Zigbee Single Coloured Receivers
• Input Voltage: 3x AAA Batteries (not included)
• Three preset scenes
• Operation Frequency: 2.4GHZ
• 3 years replacement warranty (items ordered after 01/01/22)
• 2022 Catalogue Page 286

Data Sheet

Installation Instructions

• Single Colour, CT, RGB + RGBW LED strip receiving controller
• For use with LED strip
• Can be used with both WIFI and RF
• IP Rating: IP67
• Input voltage: 12v DC or 24v DC
• To be used with various HV9102 Models (see data sheet)
• Load: 12v Max 240w | 24v Max 480w
• 3 years replacement warranty (items ordered after 01/01/22)

Data Sheet

• LED strip recieving controller
• For use with LED strip
• Input voltage: 12v DC or 24v DC
• To be used with HV9101 or HV9102 models
• Power: 12v DC 240w / 24v DC 480w
• 3 years replacement warranty (items ordered after 01/01/22)
• 2022 Catalogue Pages 291-292

Data Sheet

Installation Instructions

• Single channel LED strip repeater
• For use with LED strip
• Input Voltage: 12v DC or 24v DC
• Power: 12v DC 144w / 24v DC 288w

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 305-306

Data Sheet

Installation Instructions

• Wireless LED Repeater
• For use with LED strip
• Input Voltage: 5v-24v DC
• Signal: Wireless RF 2.4GHz
• Works with HV9103-F4-5A Receivers

• 3 years replacement warranty (items ordered after 01/01/22)

Installation Instructions

• WIFI controller
• For use with LED strip
• Control led strip through your WIFI
• Also supplied with Remote Control
• Input voltage: 12v DC or 24v DC
• Power: 12v DC 192w / 24v DC 384w
• Weight: 70g

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 307-308

Data Sheet

Installation Instructions

• Single Coloured Zigbee LED Controller
• Can be used with Amazon Alexa and Google Home
• Input Voltage: 12v DC or 24v DC
• Output Power: 4CH x 5A (12v=240W / 24v = 480W)
• Must be used suitable LED Driver
• 3 Years replacement warranty (items ordered after 01/01/22)
• 2022 Catalogue Page 287

Data Sheet

Installation Instructions

• 0-1/10V LED strip controller
• For use with Single Colour LED strip
• Input signal: 0-1/10v
• Input voltage: 12v DC or 24v DC
• Power: 12v DC 120w / 24v DC 240w

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 309-310

Data Sheet

Installation Instructions

• Dali LED strip controller
• For use with Single Colour LED strip
• Input signal: Dali digital dimming signal
• Output signal: 0-1/10v
• Input voltage: 12v DC or 24v DC
• Power: 12v DC 144w / 24v DC 288w

• 3 years replacement warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 309-310

Data Sheet

Installation Instructions

• DMX LED strip controller
• For use with Single Colour LED strip
• Input signal: DMX512
• Input voltage: 12v DC or 24v DC
• Max Load Current: 12A x 1CH + 0-10V X 1CH + 10V PWM X 1CH
• Max Output Power: 12v DC 144w / 24v DC 288w
• Dimming Range: 0-100%
• IP rating: IP20
• 3 Years replacement warranty (items ordered after 01/01/22)
• 2022 Catalogue Page 311-312

Data Sheet

Installation Instructions

• LED Dial Dimmer
• Input Voltage: 240v
• IP Rating: IP20
• Dimming Range: 10%-100%
• Dimmer Type: Trailing
• Max Load: 3-300w

• 3 Years Replacement Warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 314

Data Sheet

• 0-1/10v Dimming Pot
• Suits Clipsal and HPM Standard Plates
• Must Be Used with 0-1/10v LED Controllers

• 3 Years Replacement Warranty (items ordered after 01/01/22)

• 2022 Catalogue Page 314

Data Sheet
