Name: HV5854S-WHT | HV5854S-WHT-12V - Nella White 24w Surface Mounted LED Downlight
Brand: Havit Lighting
SKU: HV5854S-WHT
Availability: InStock

HV5854S-WHT | HV5854S-WHT-12V - Nella White 24w Surface Mounted LED Downlight

Description
Product Information
Data Sheet
IES Files
Install Sheet

Description

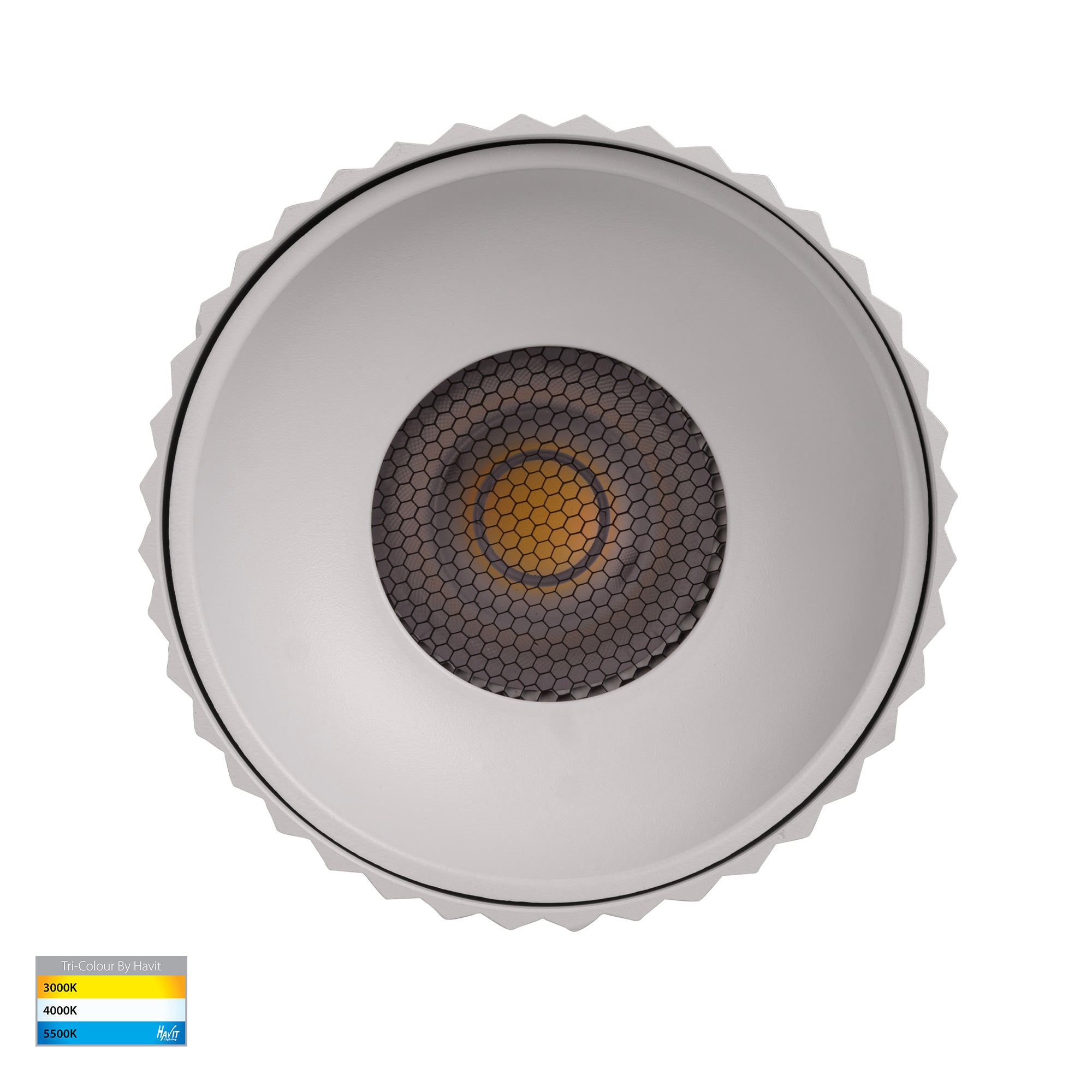

Nella Surface mounted LED downlight
Aluminium powder coated white finish
Complete with Honeycomb lens
60° beam angle
Triac Dimmable (240v Model Only)
5 Colour - 2700k, 3000k, 4000k, 5000k, 5700k
IP rating: IP65
Input voltage: Available in 12v DC or 240v AC
Built in 18w LED
3 Years replacement warranty

12v model must be used with a suitable 12v DC LED Driver - View Here

Optional Brass Attachment - View Here

Optional Coloured inserts and Pendant Accessories - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5854S-WHT	2700k 3000k 4000k 5000k 5700k	1400lm 1410lm 1420lm 1430lm 1440lm	24w 240v Built in LED	240v
HV5854S-WHT-12V	2700k 3000k 4000k 5000k 5700k	1400lm 1410lm 1420lm 1430lm 1440lm	24w 12v DC Built in LED	12v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

240v Installation Instructions

12v DC Installation Instructions
