Name: HV5842S-WHT | HV5842S-WHT-12V - Nella White 12w Surface Mounted LED Downlight
Brand: Havit Lighting
SKU: HV5842S-WHT
Availability: InStock

HV5842S-WHT | HV5842S-WHT-12V - Nella White 12w Surface Mounted LED Downlight

Description
Product Information
Data Sheet
IES Files
Install Sheet

Description

Nella Surface mounted LED downlight
Aluminium powder coated white finish

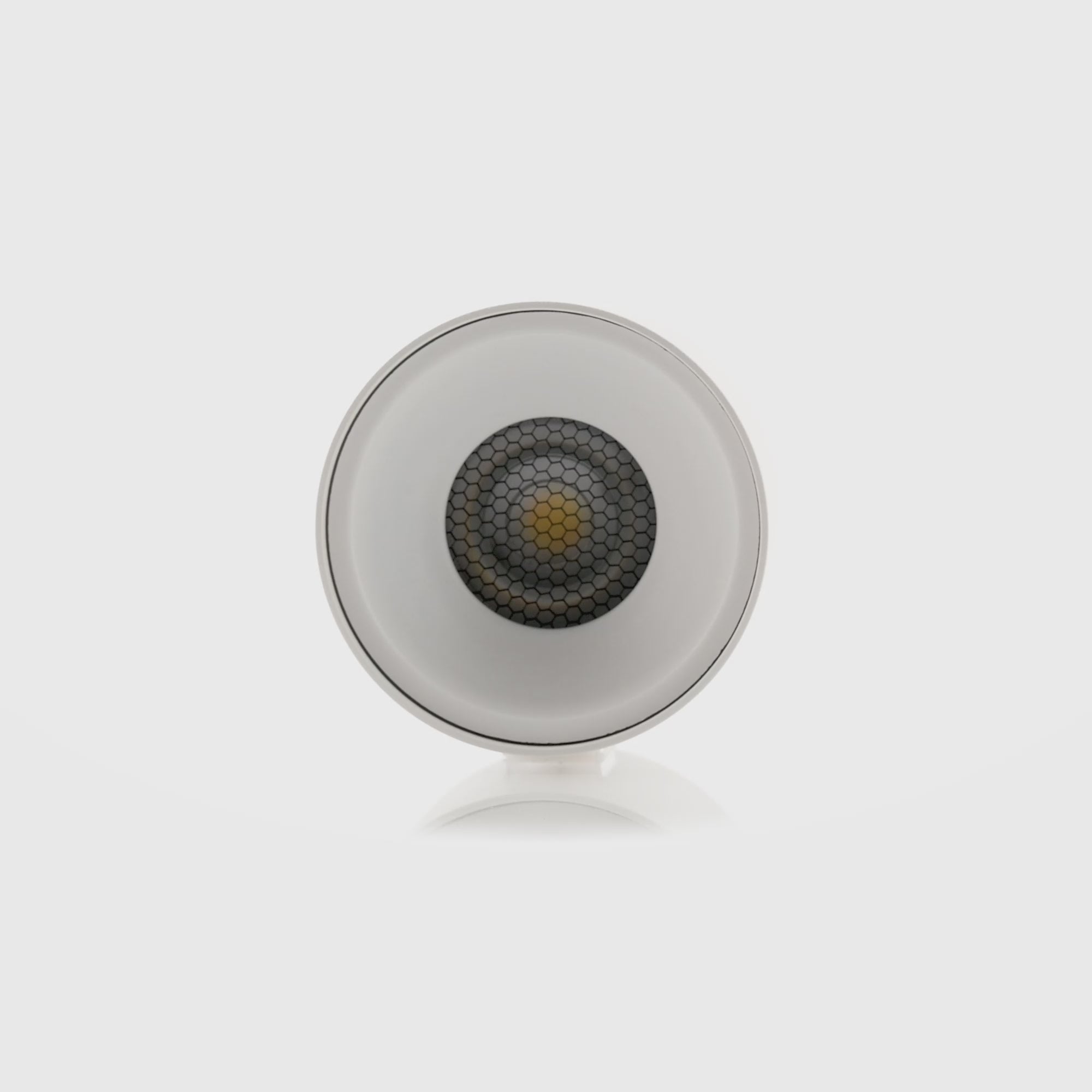

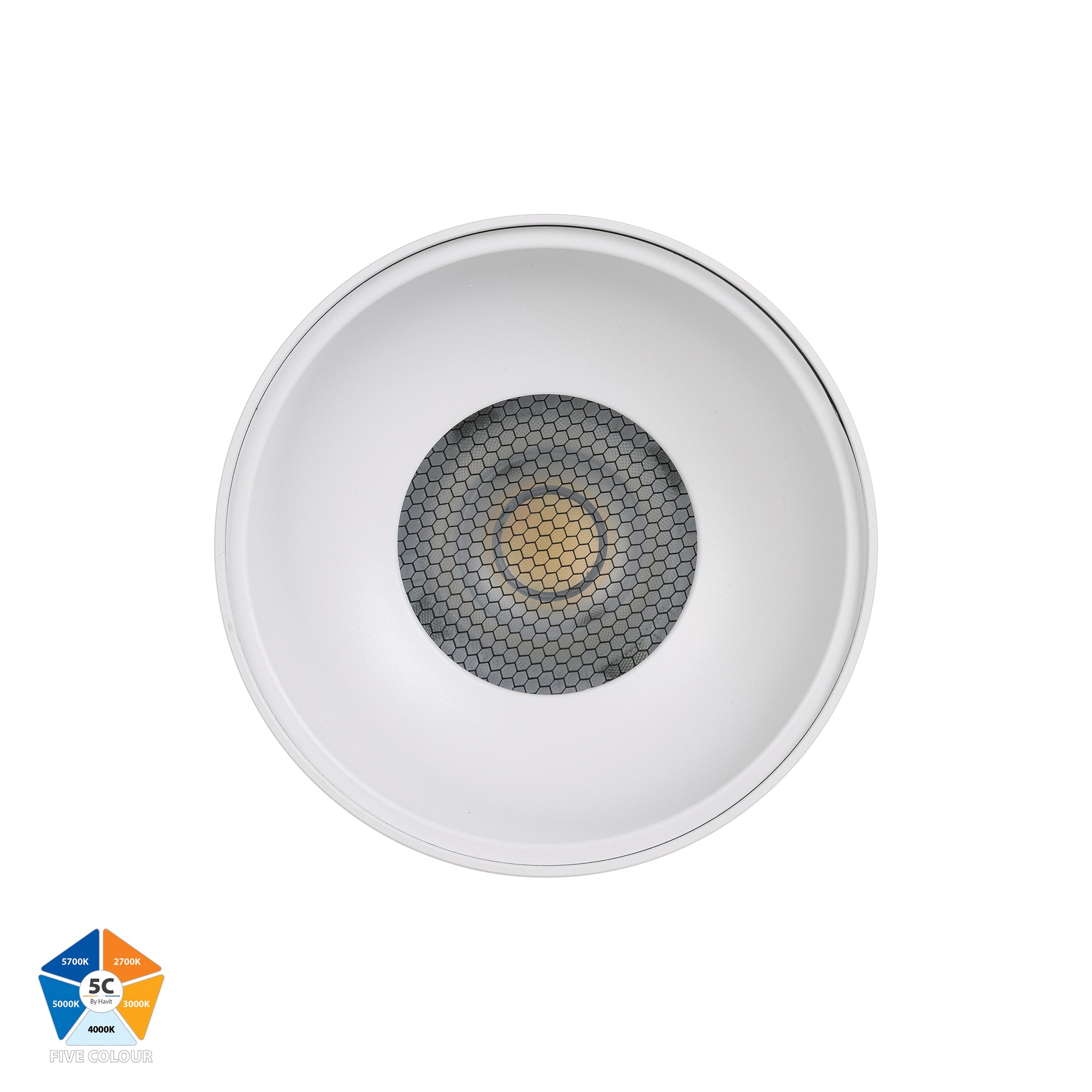

Complete with Honeycomb lens
60° beam angle
Triac Dimmable (240v Model Only)
5 Colour
2700k, 3000k, 4000k, 5000k, 5700k
IP rating: IP54
Input voltage: 240v AC
Built in 12w LED
3 Years replacement warranty (items ordered after 01/01/22)

12v model must be used with a suitable 12v DC LED Driver - View Here

Available in Dali Dimming through Havit Commercial View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5842S-WHT	2700k 3000k 4000k 5000k 5700k	688lm 840lm 916lm 931lm 1004lm	12w 240v Built in LED	240v
HV5842S-WHT-12V	2700k 3000k 4000k 5000k 5700k	688lm 840lm 916lm 931lm 1004lm	12w 12v DC Built in LED	12v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

240v Installation Instructions

12v DC Installation Instructions
