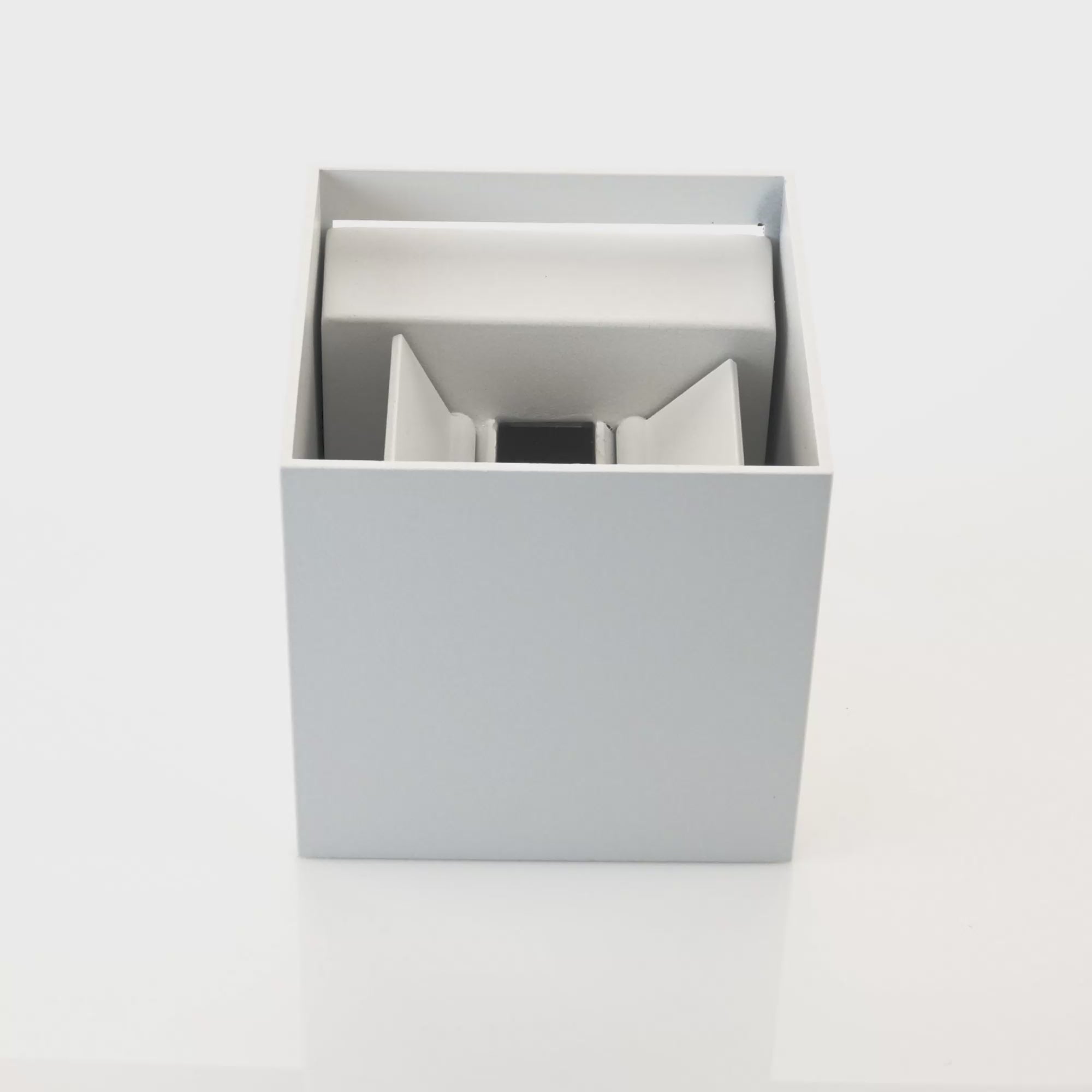

HV3658T-WHT-SQ | HV3658T-WHT-SQ-12V - Versa White Square Up & Down Wall Light
- Description
- Product Information
- Data Sheet
- IES Files
- Install Sheet
Description
- Versa Up & Down Square LED wall light
- Aluminium poly powder coated white
- Adjustable Beam Angle: 5-120 degrees
- IP rating: IP65
- Triac Dimmable - 240v Model Only
- Input voltage: Available in either 240v AC or 12v DC
- TRI Colour
- 3000k, 4000k, 5500k
- 2 x 3w Built-in LED
- 3 years replacement warranty (items ordered after 01/01/22)
12v DC Model must be used with a suitable 12v DC LED Driver - View Here
Product Information
| Part Number | Colour Temp | Lumens | Included LED | Input Voltage |
| HV3658T-WHT-SQ | 3000k 4000k 5500k |
2x 220lm 2x 230lm 2x 240lm |
2x 3w 240v Built in LED |
240v |
| HV3658T-WHT-SQ-12V | 3000k 4000k 5500k |
2x 220lm 2x 230lm 2x 240lm |
2x 3w 12v DC Built in LED |
12v DC |
