Name: HV3008T-BLK-12V | HV3008T-BLK-240V - Bata Black 3w LED Brick Light
Brand: Havit Lighting
SKU: HV3008T-BLK-12V
Availability: InStock

HV3008T-BLK-12V | HV3008T-BLK-240V - Bata Black 3w LED Brick Light

Description
Product Information
Data Sheet
IES Files
Install Sheet

Description

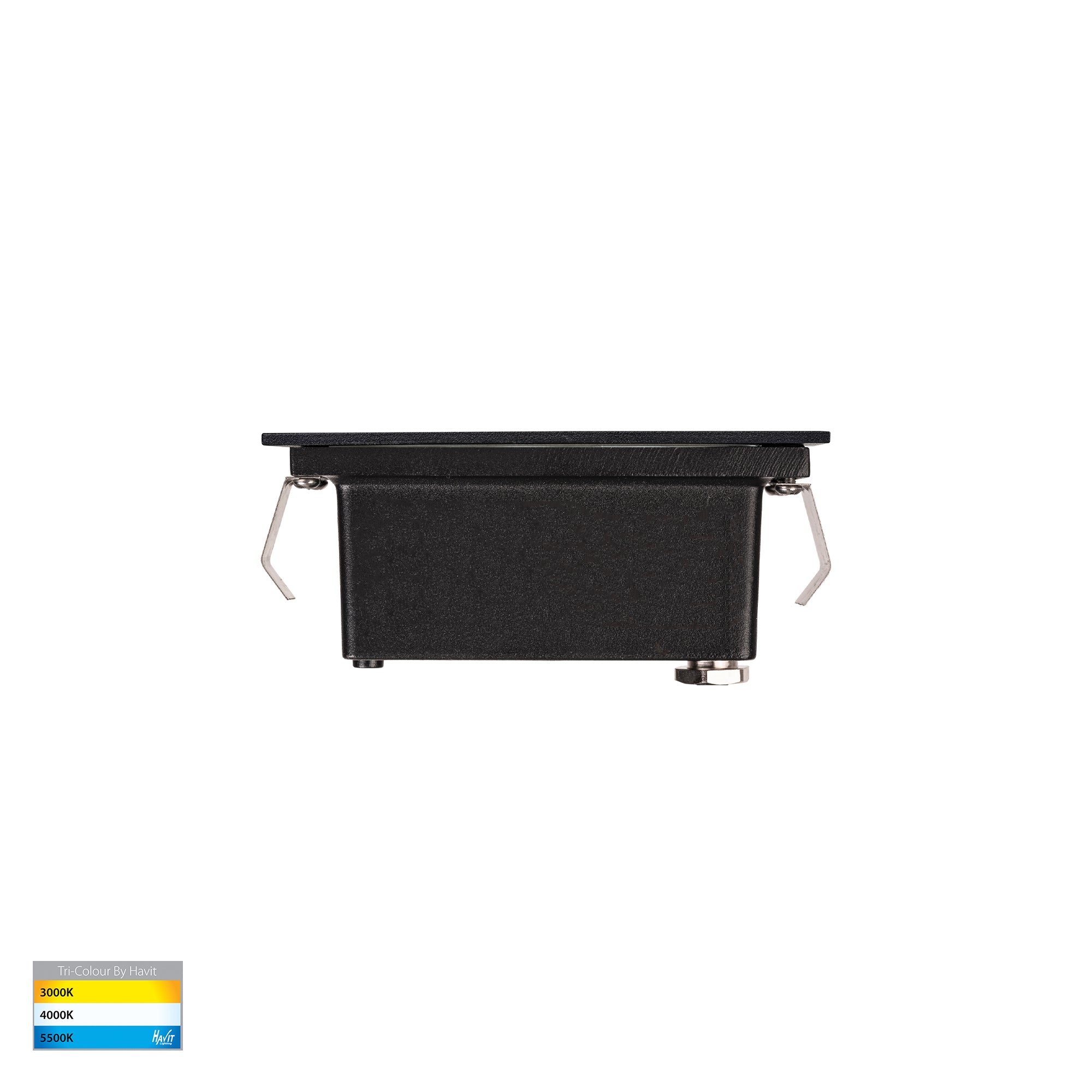

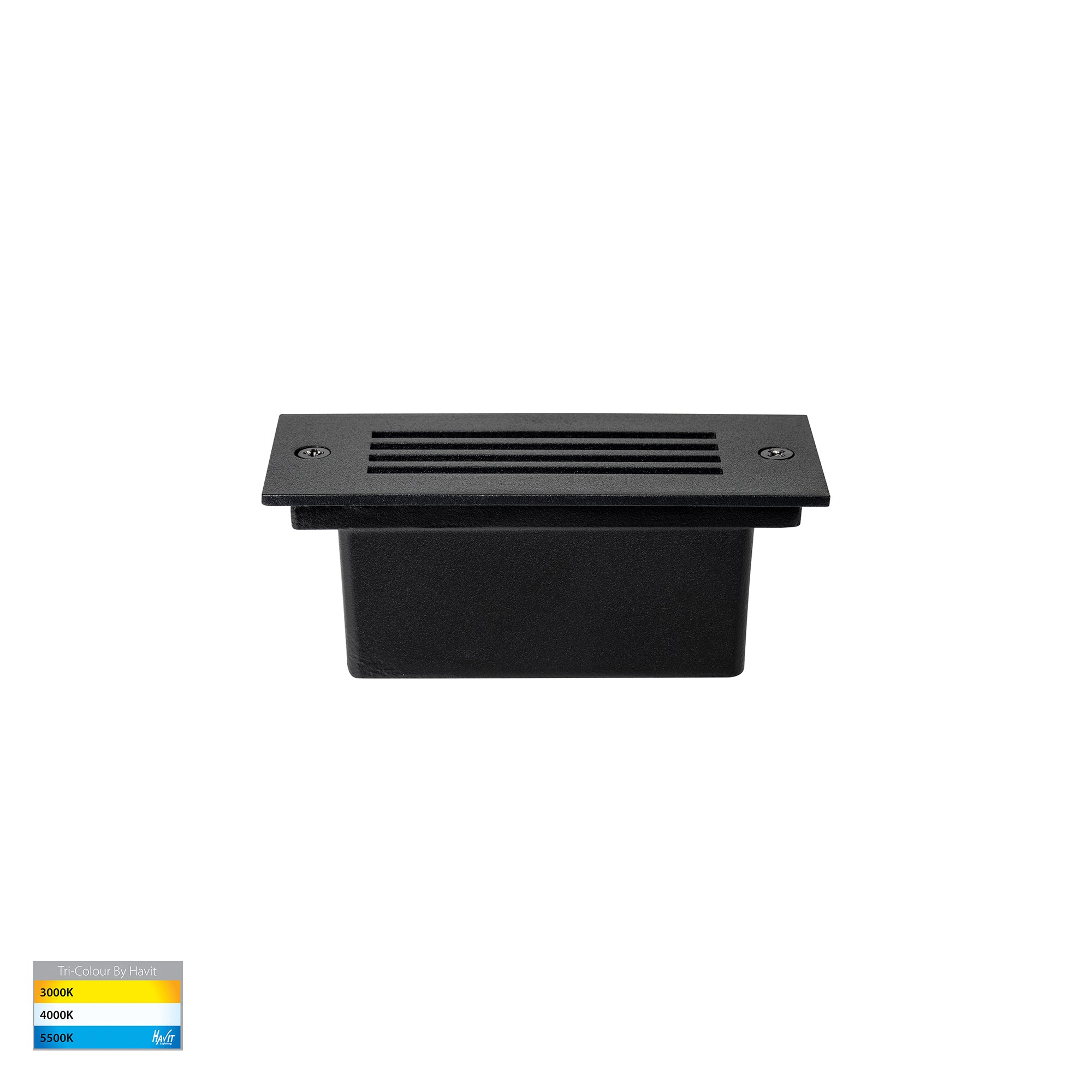

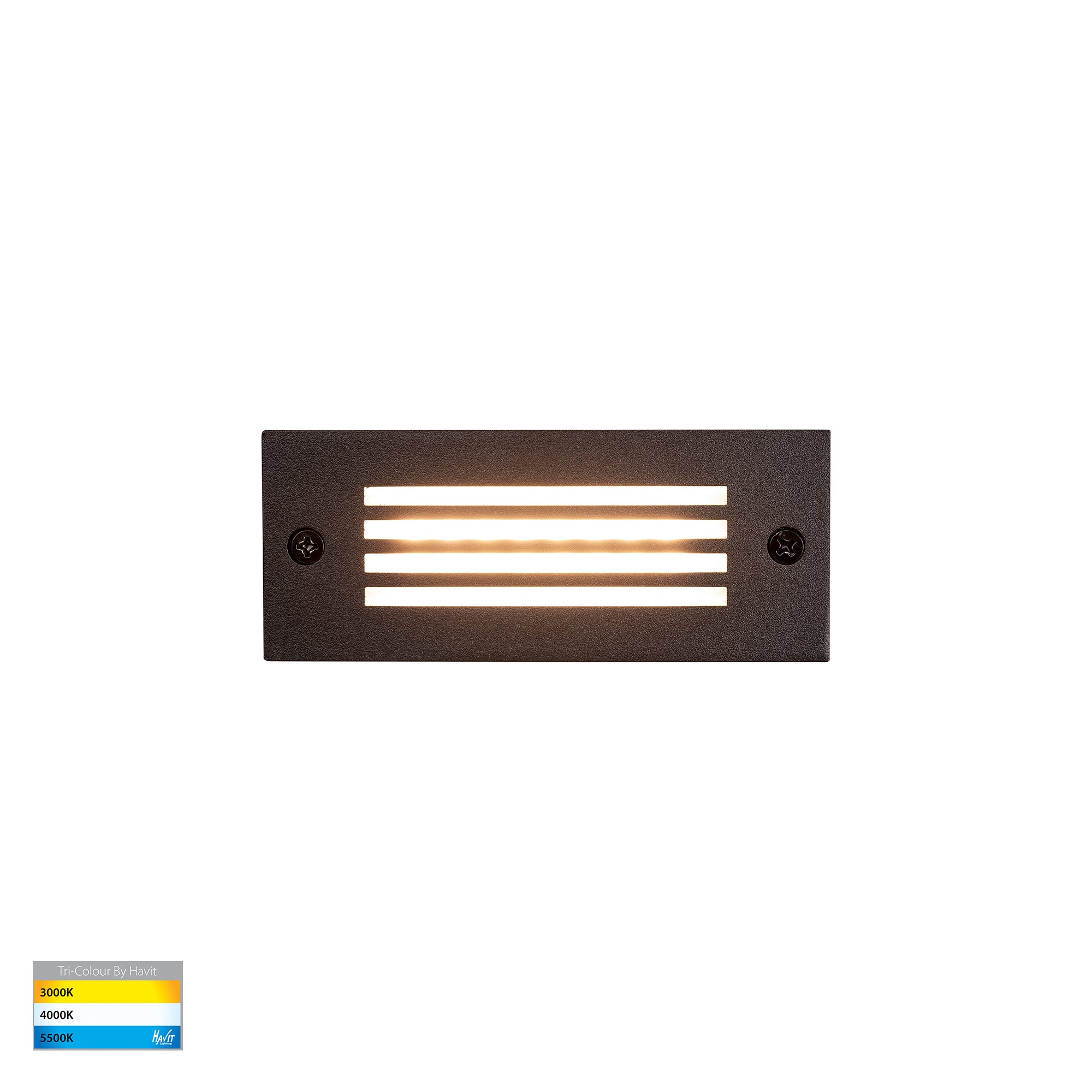

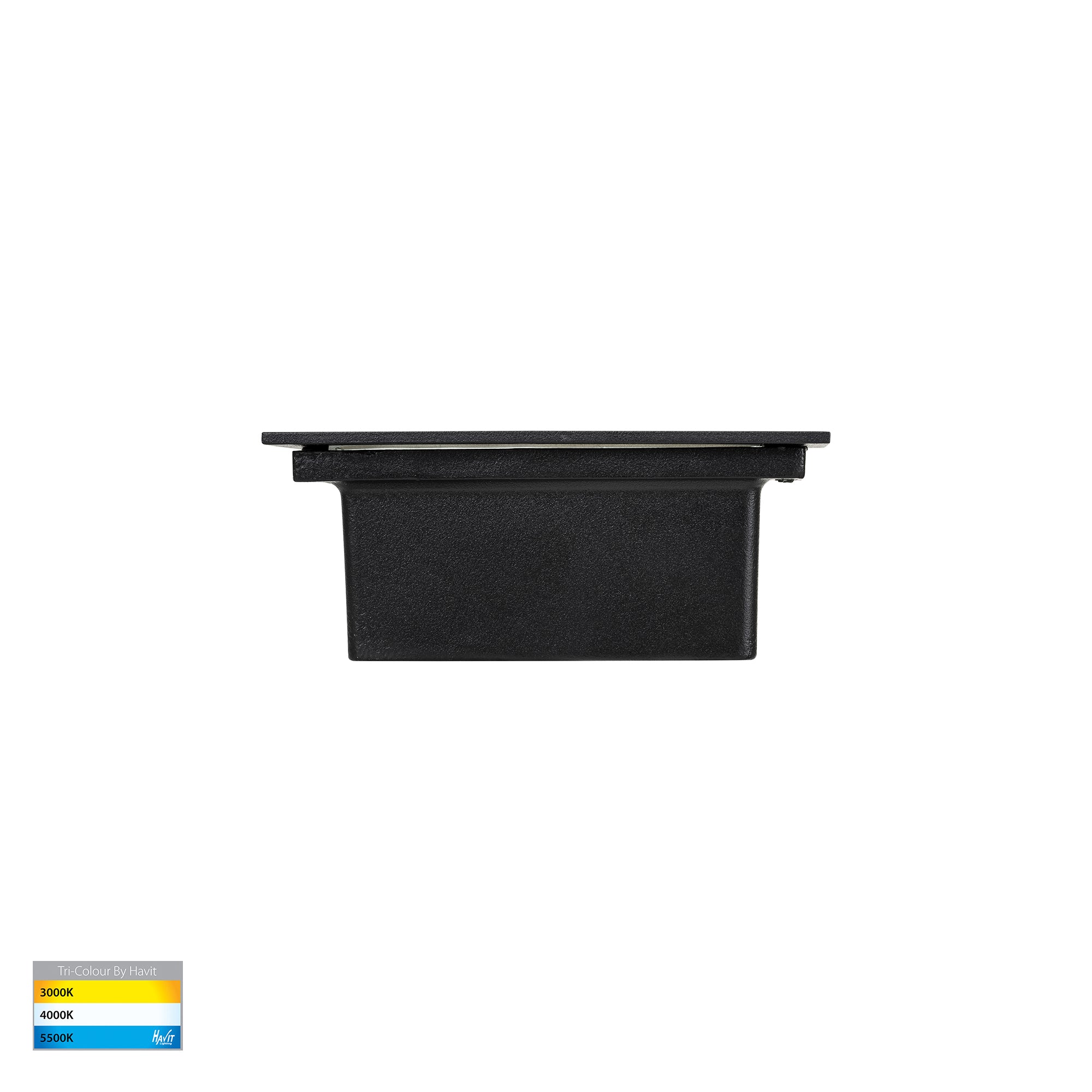

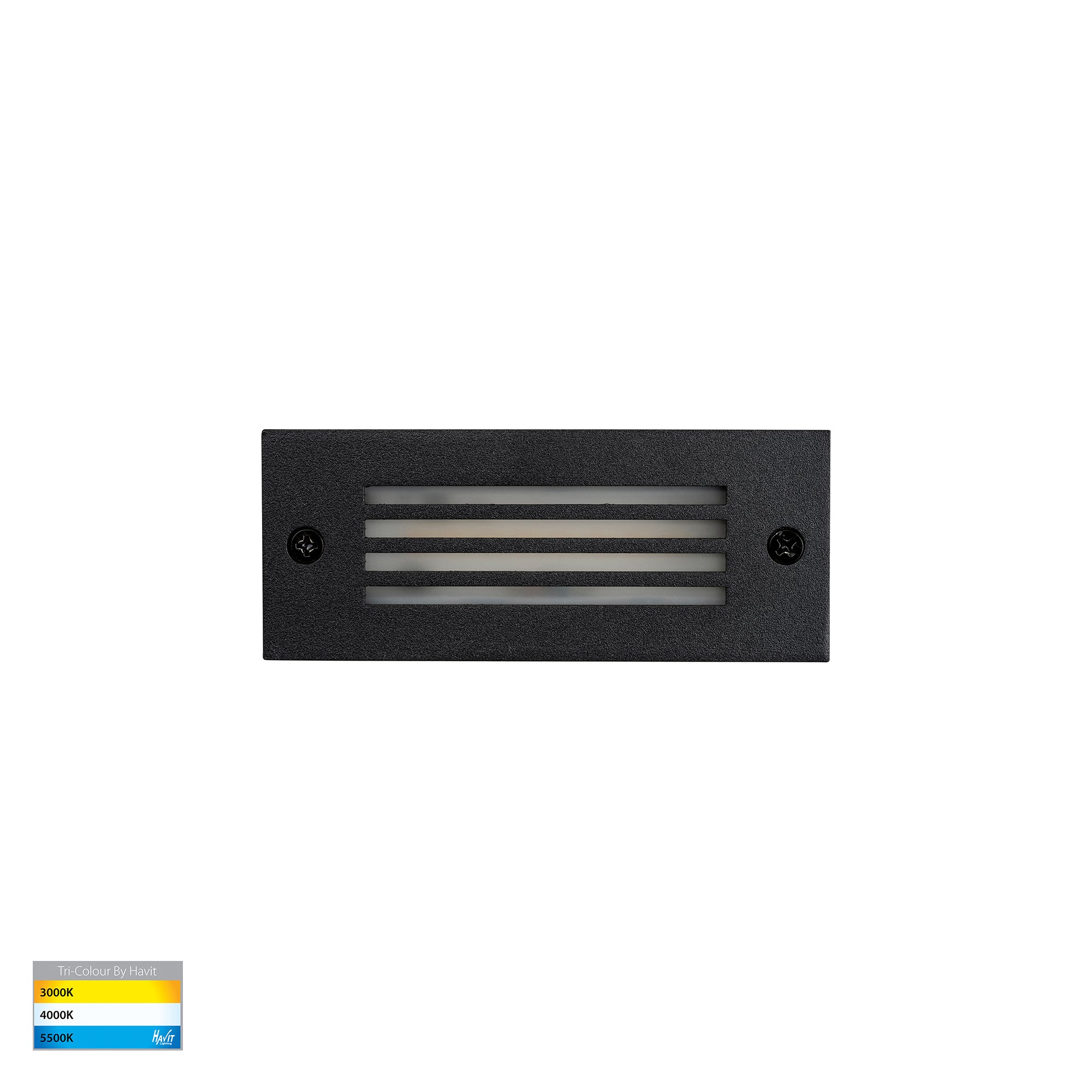

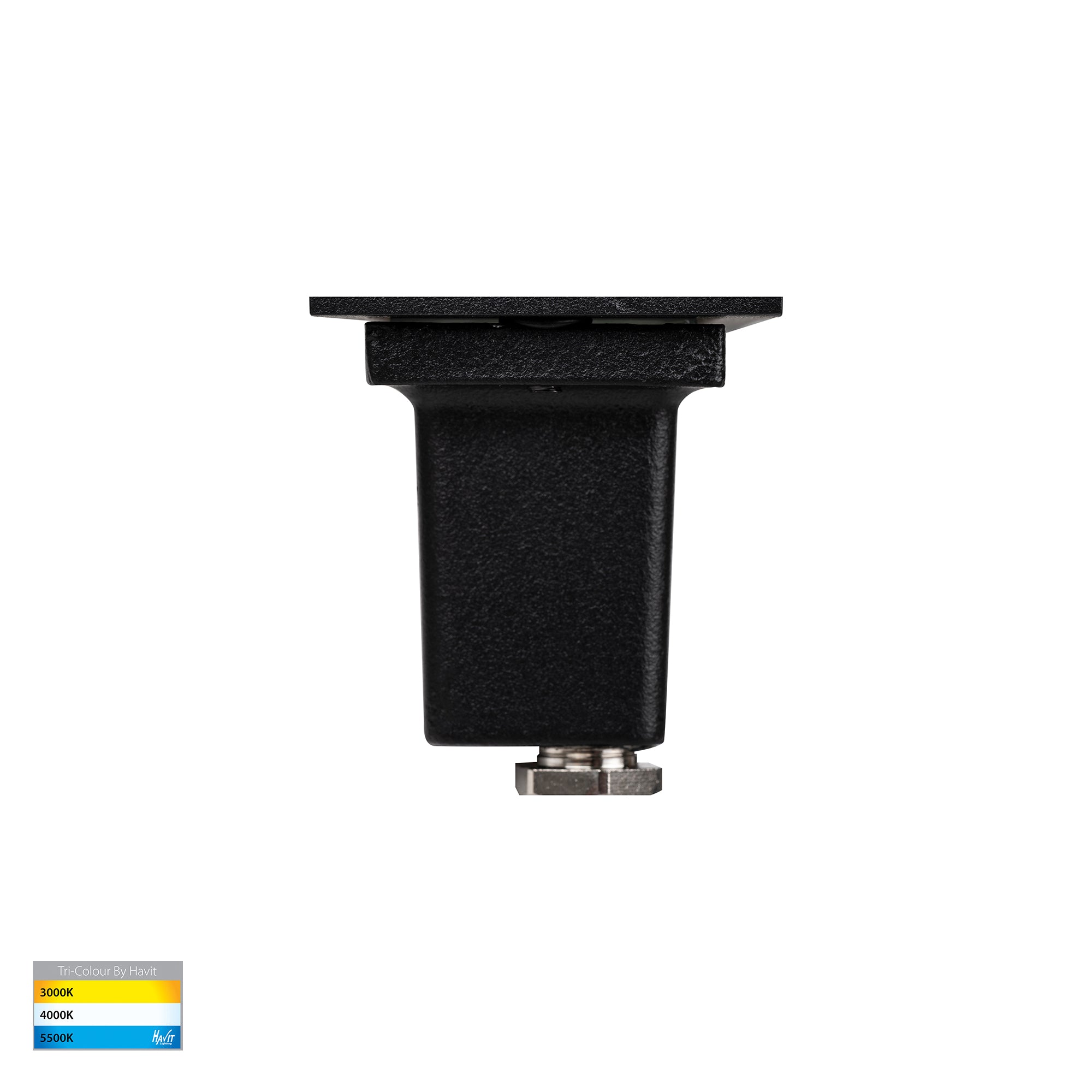

Bata Recessed Brick light with grill face
Stainless Steel Poly Powder Coated Black Cover
Powder coated die-cast aluminium body

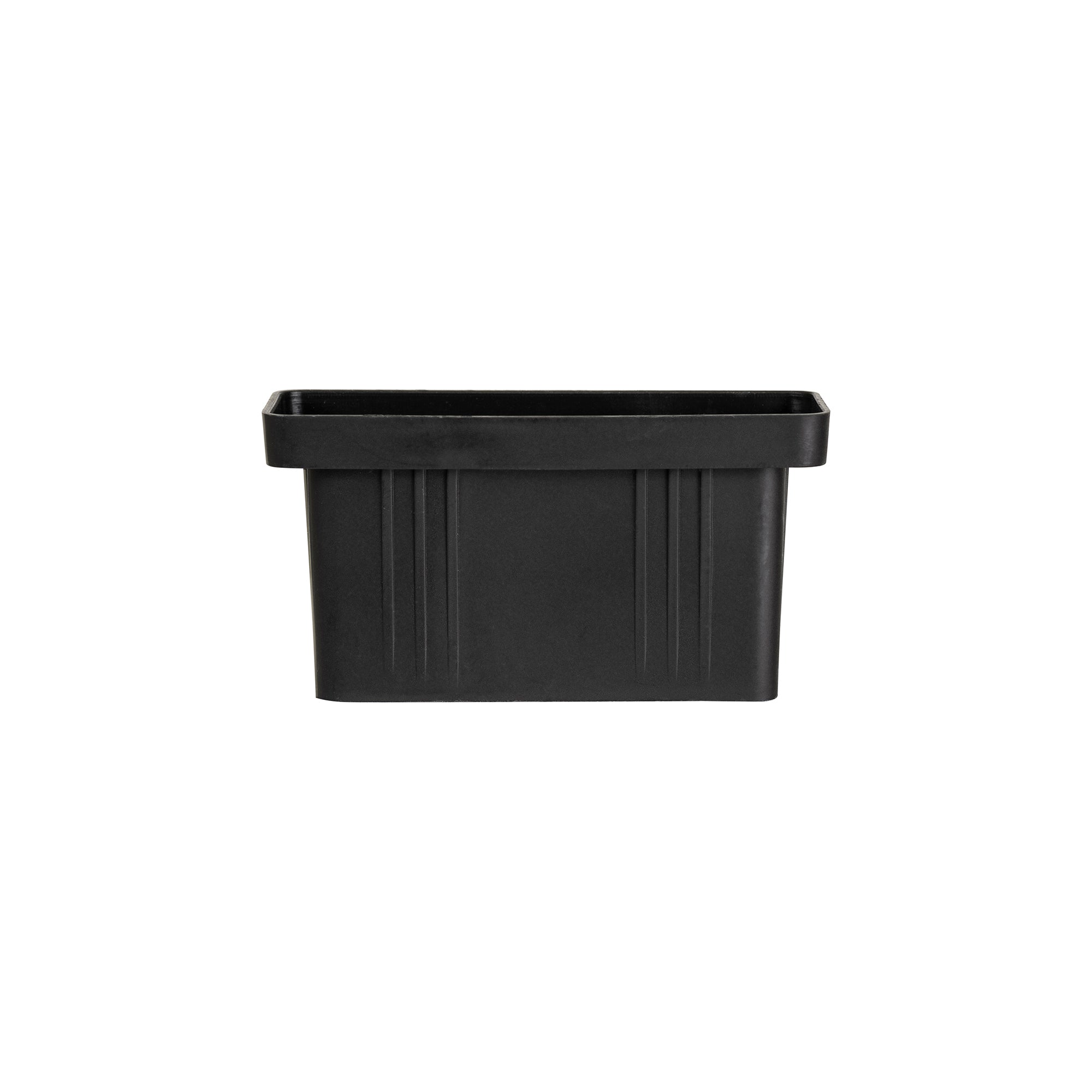

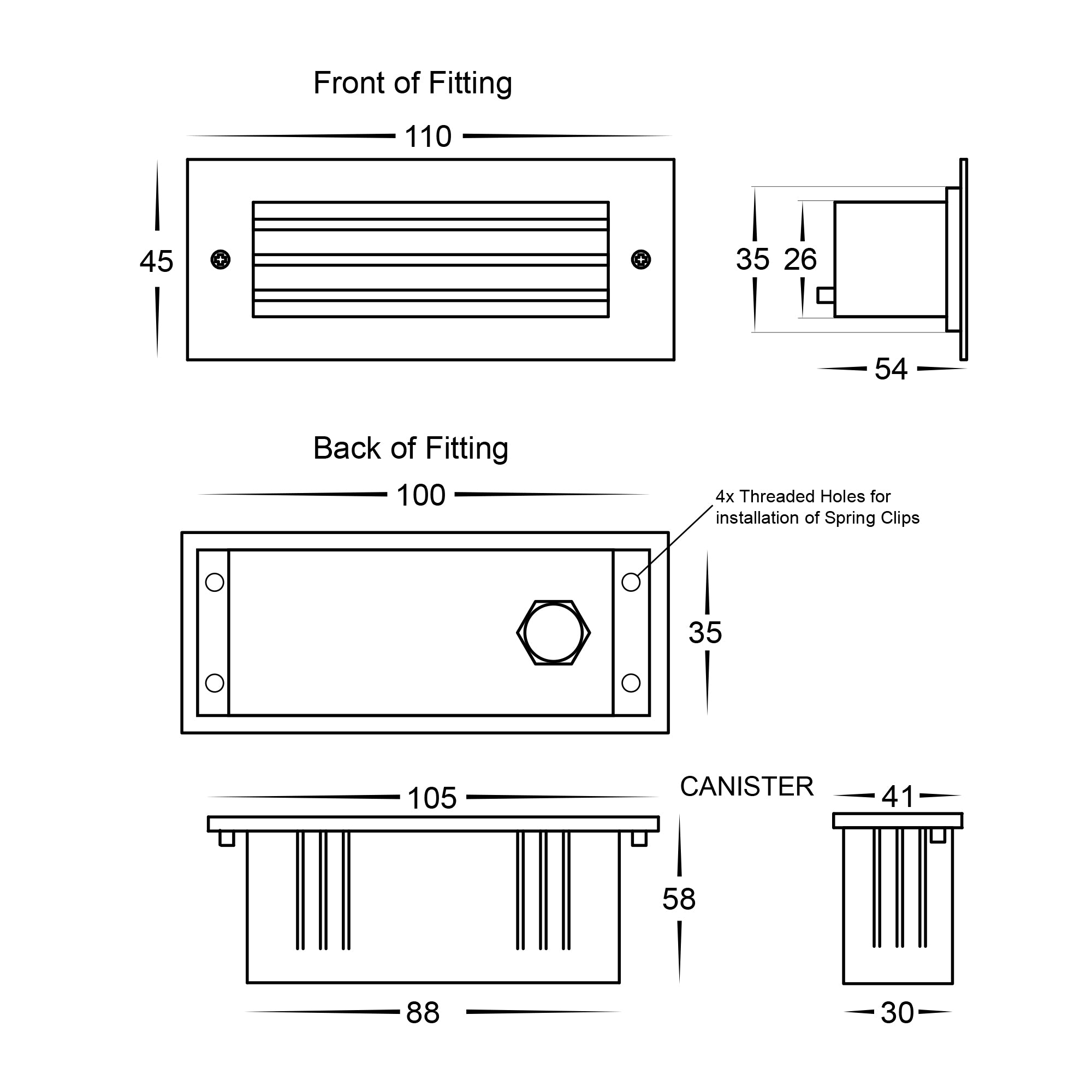

Cutout with Canister: 105mm x 41mm
Cutout without Canister: 103mm x 35mm
Installation Depth: 58mm
Frosted tempered glass
Tri Colour
3000k, 4000k, 5500k
Suitable for installation in wall
IP Rating: IP54
Input Voltage: Available in either 240v AC or 12v DC
Replaceable LED Panels
Built in 3w LED
3 Years Replacement warranty (items ordered after 01/01/22)

12v Model must be used with suitable 12v DC LED driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3008T-BLK-12V	3000k 4000k 5500k	240lm 255lm 270lm	3w 12v DC Built in LED	12v DC
HV3008T-BLK-240V	3000k 4000k 5500k	240lm 255lm 270lm	3w 240V Built in LED	240v AC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
