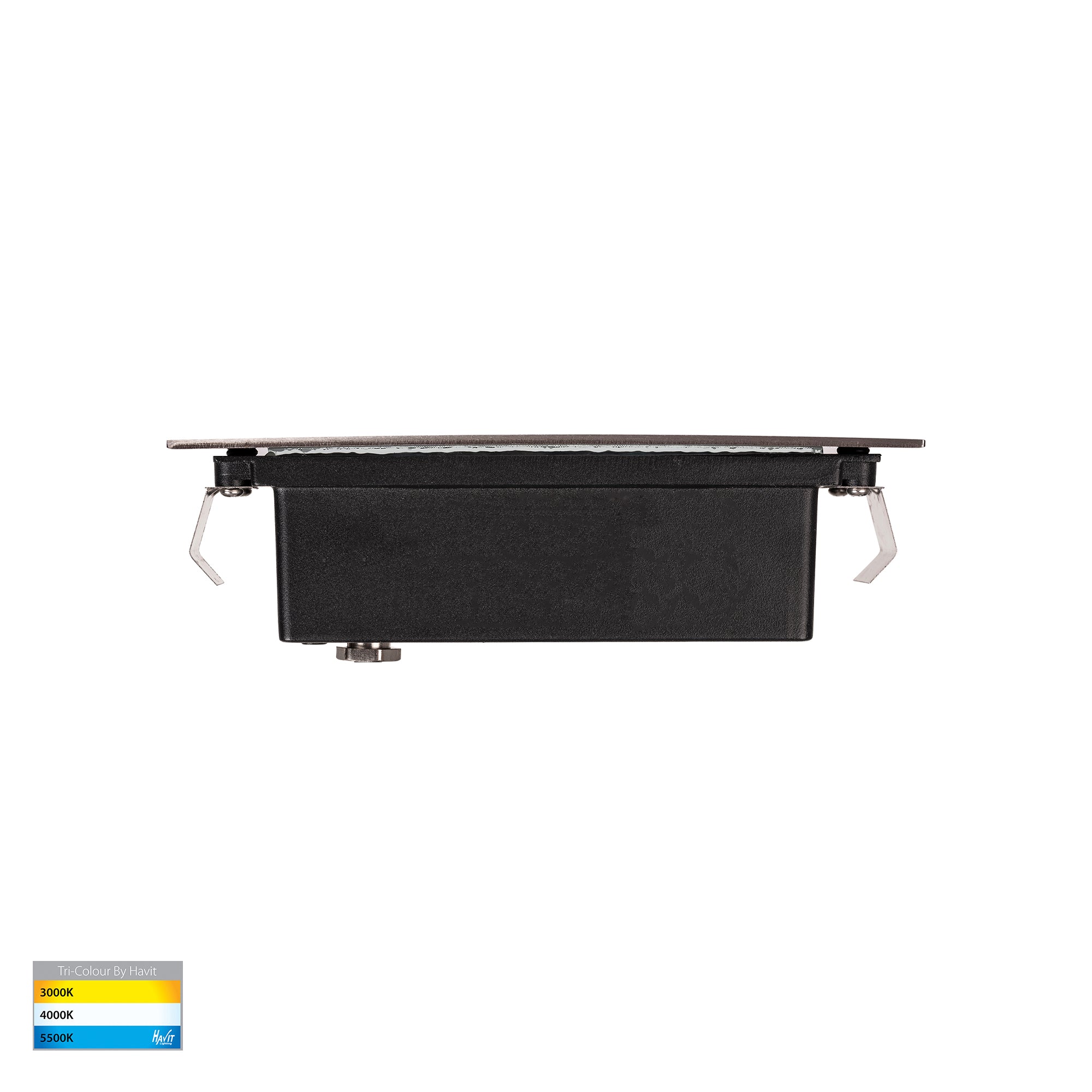

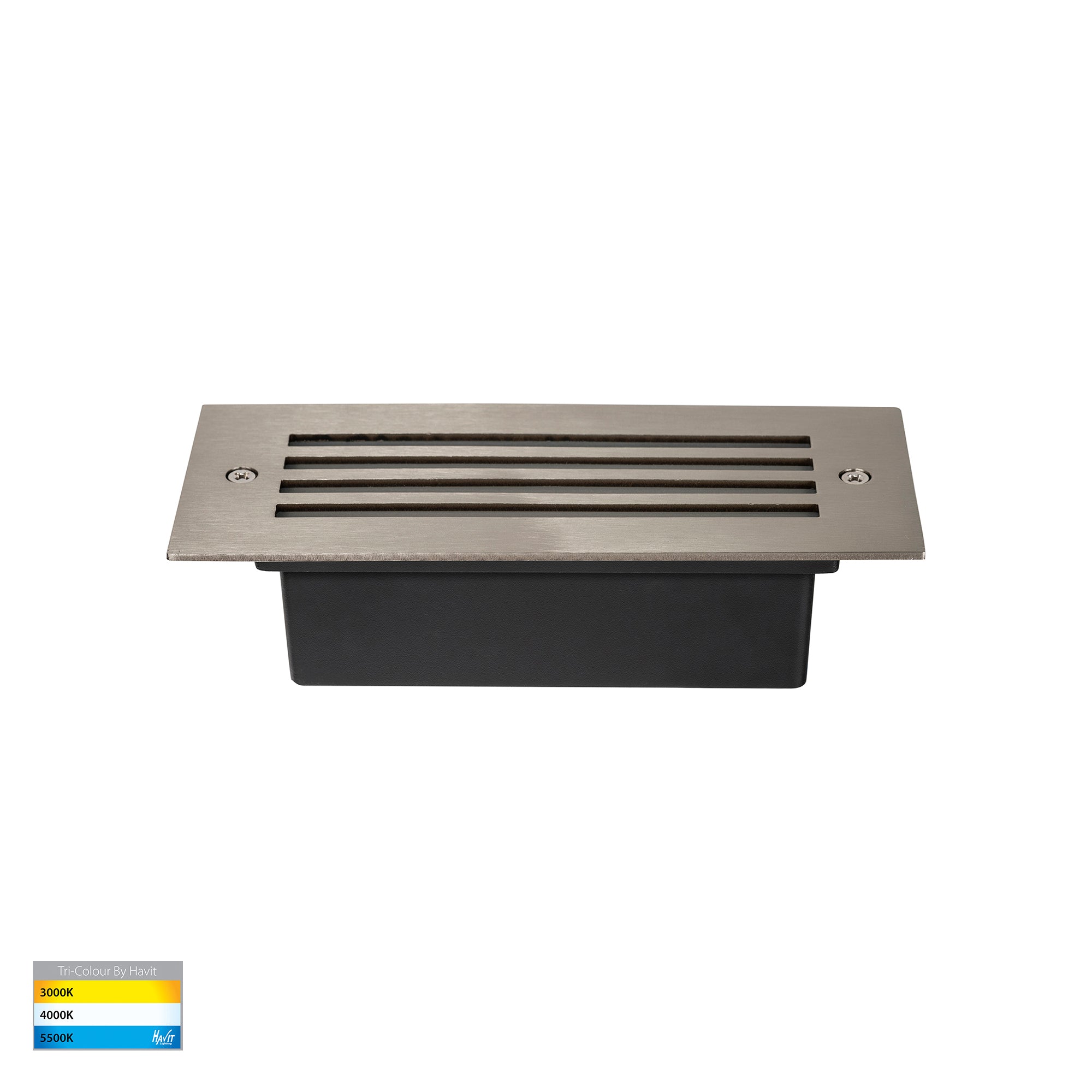

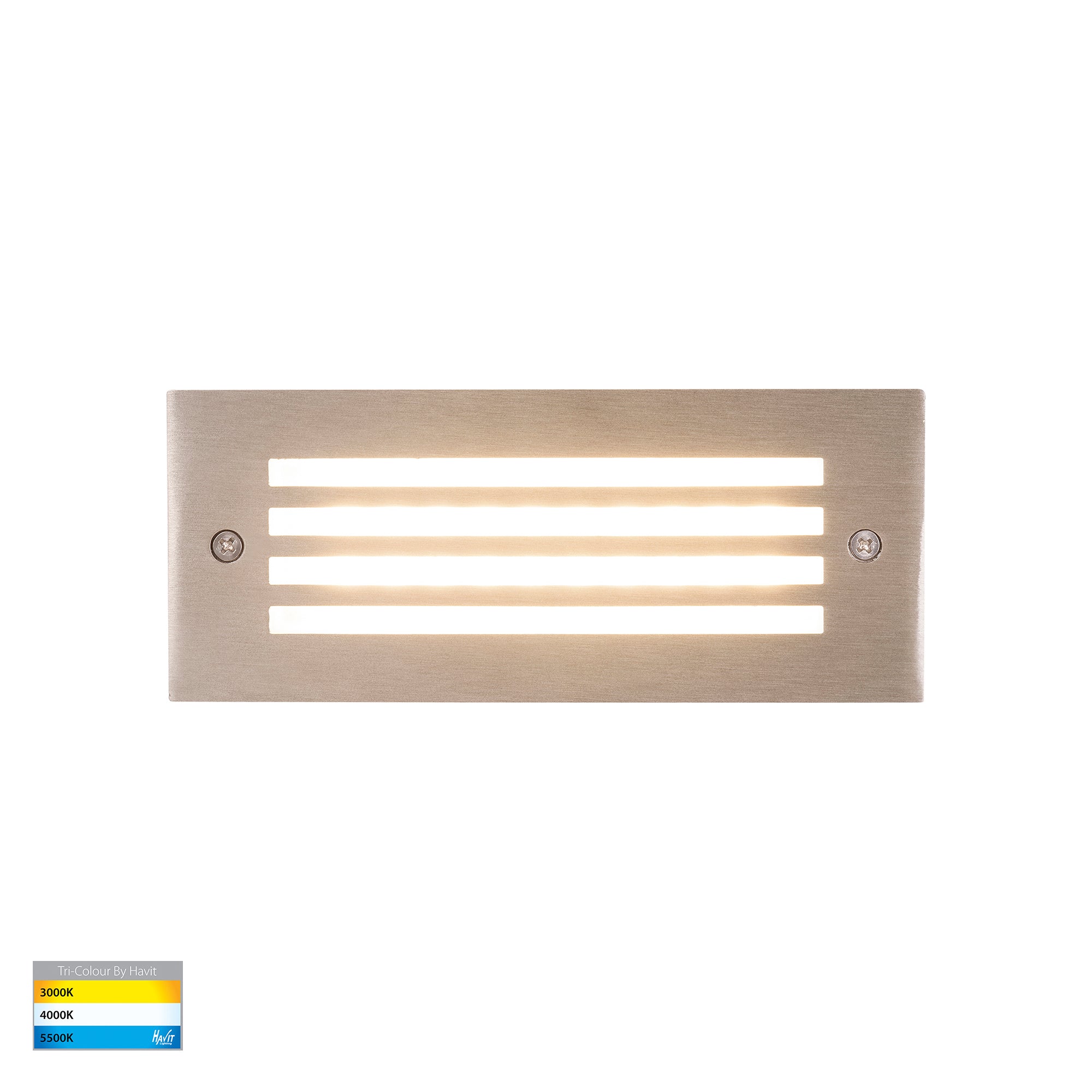

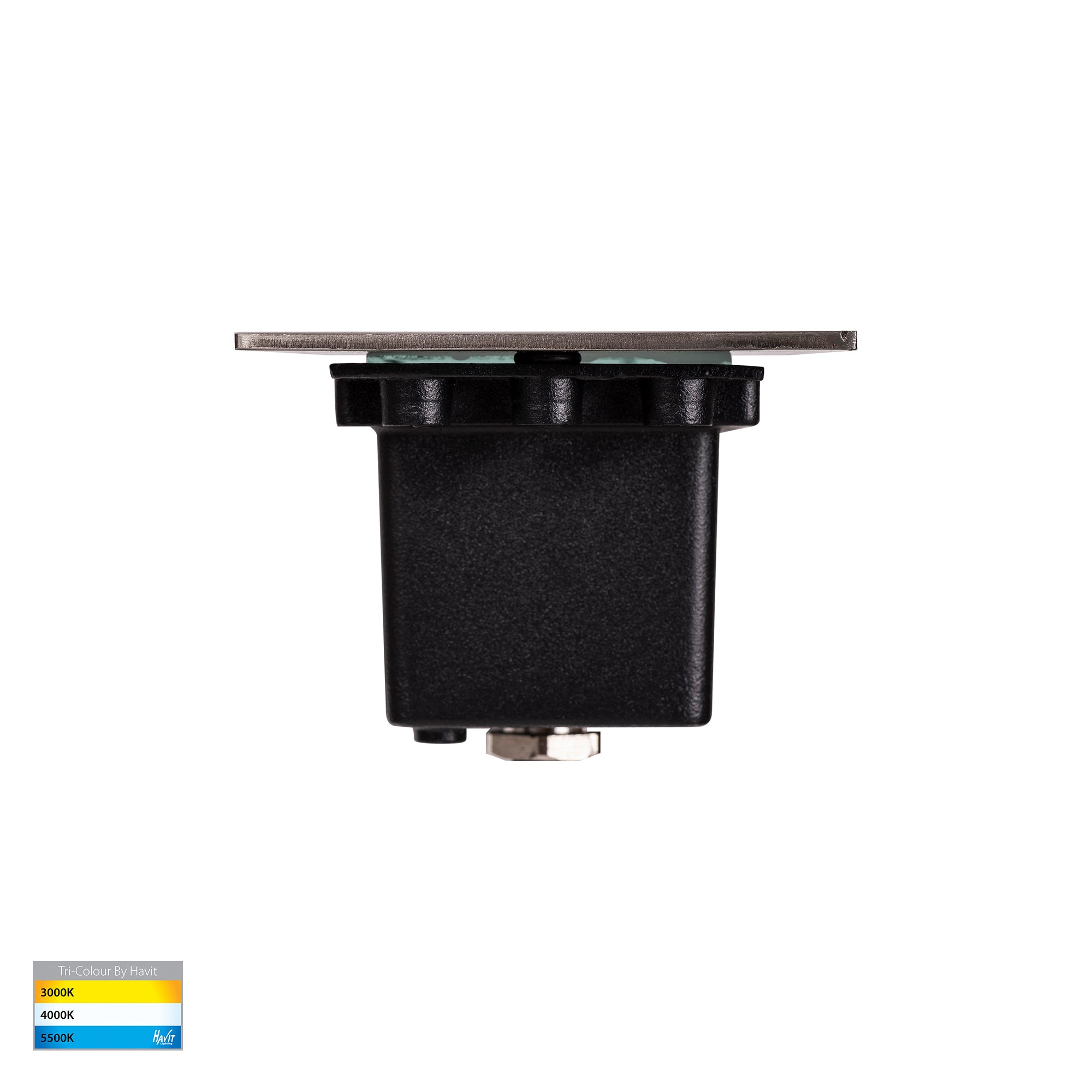

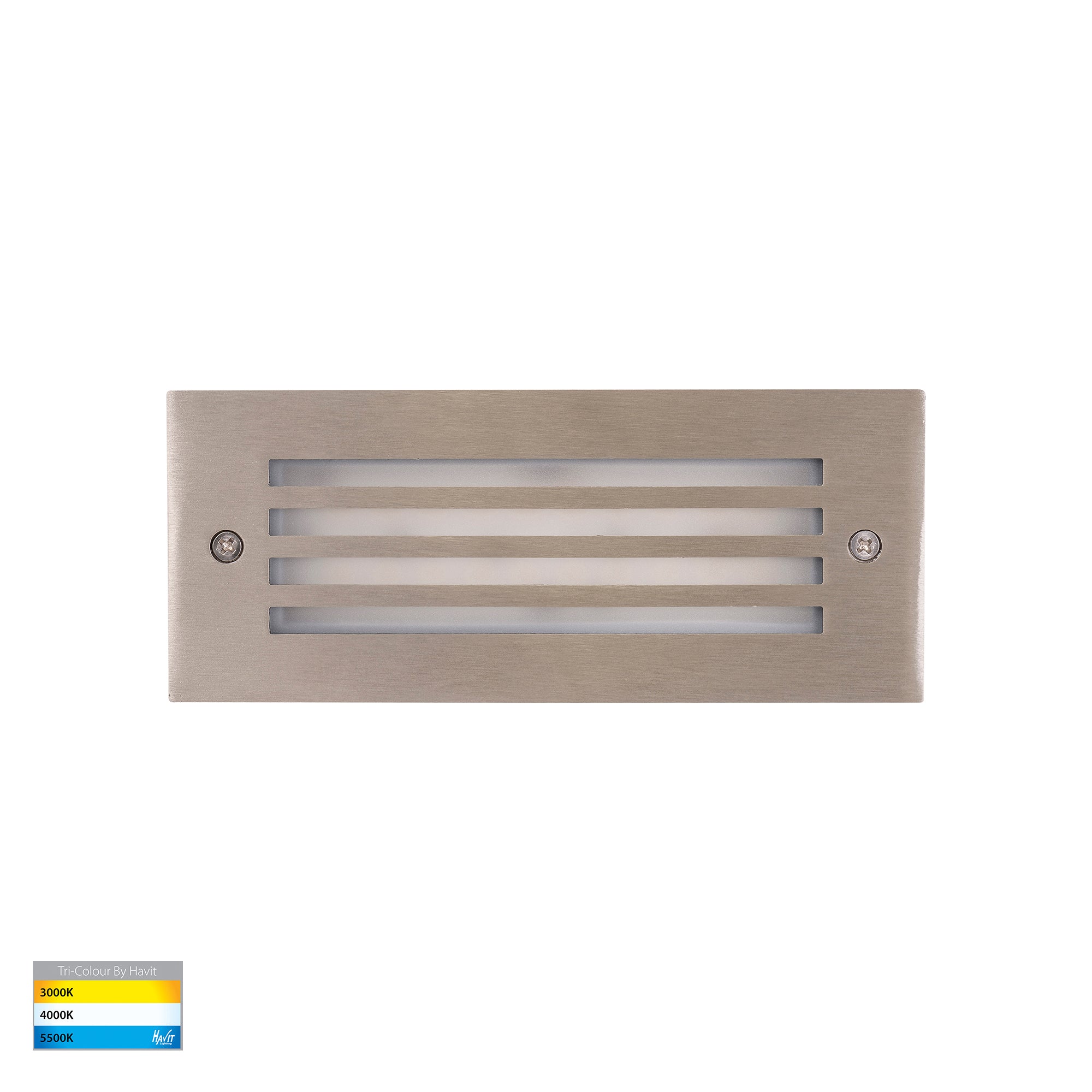

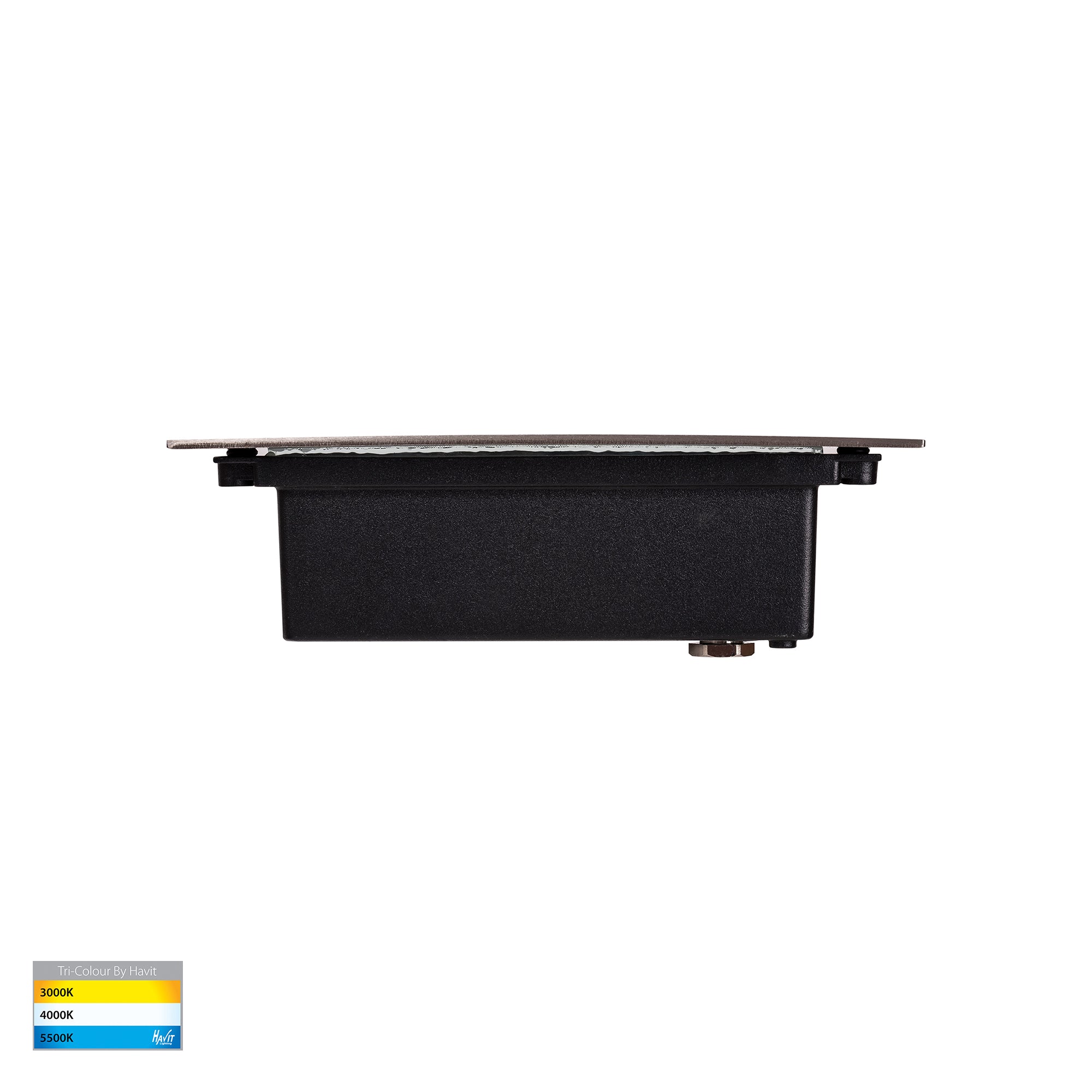

HV3006T-SS316-12V - Bata 316 Stainless Steel 6w LED Brick Light

  • Brick light with grill face
  • Stainless Steel 316 Marine Grade Cover
  • Powder coated die-cast aluminium body

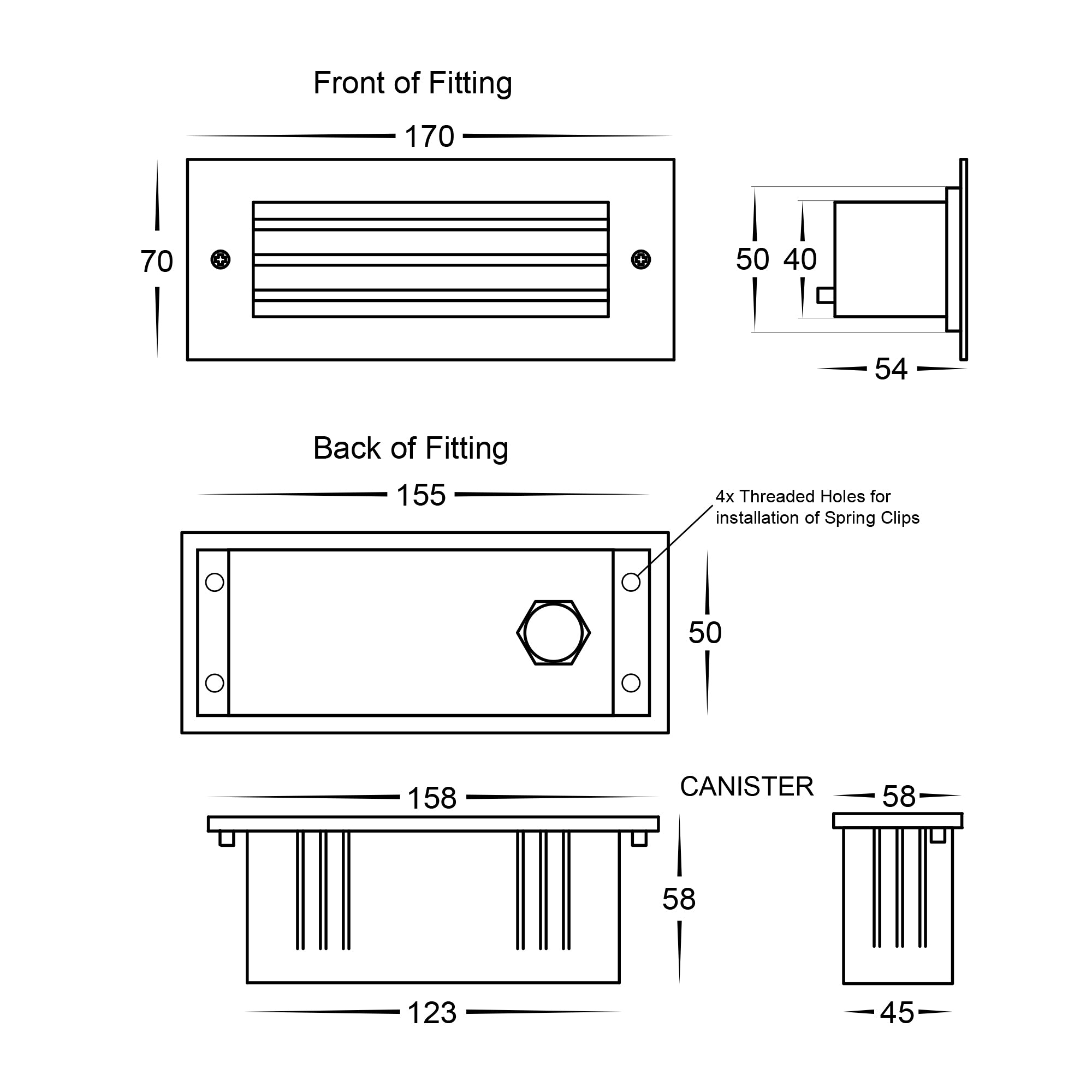

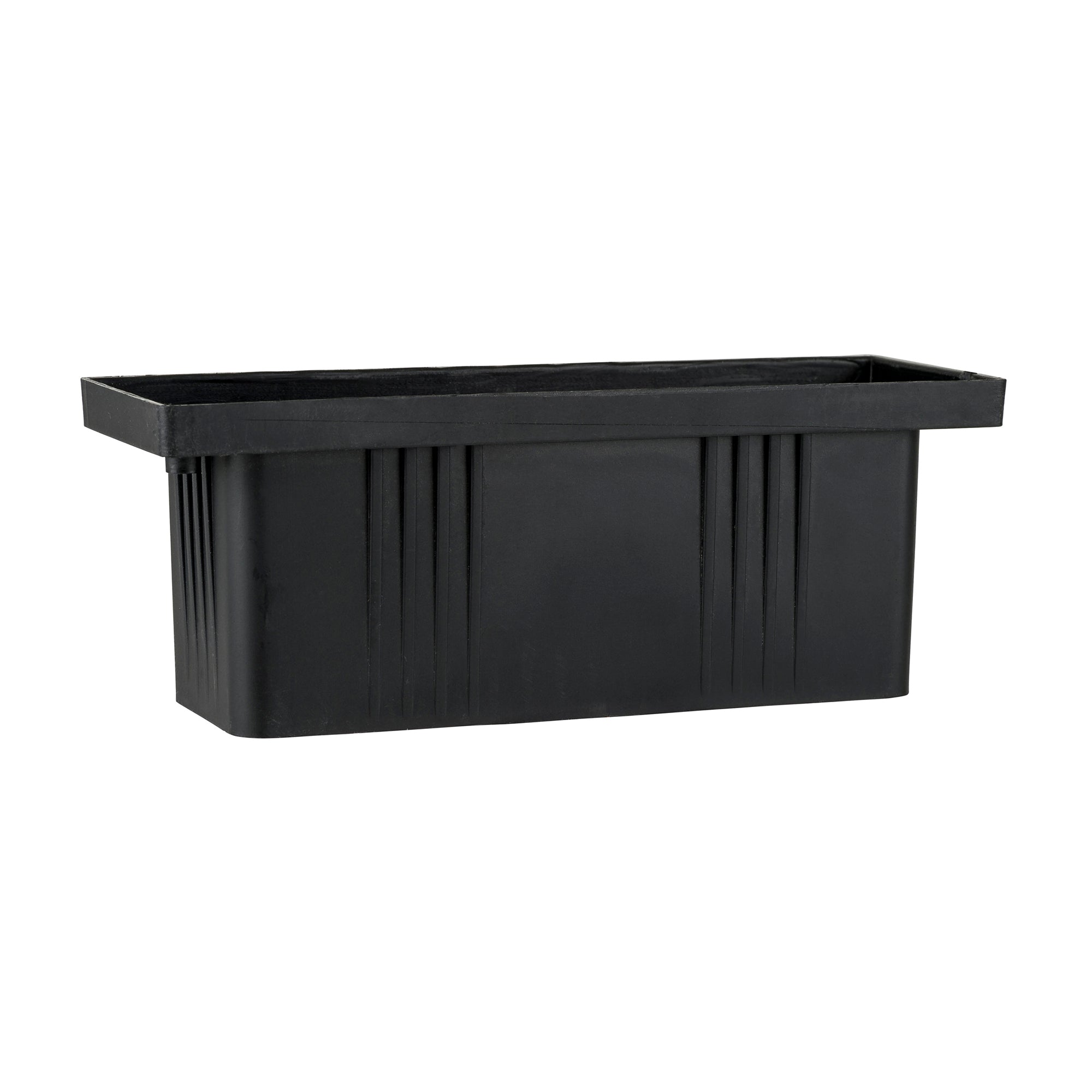

  • Cutout with Canister: 159mm x 58mm
  • Installation Depth:60mm
  • Frosted tempered glass
  • IP Rating: IP54
  • Input voltage: 12v DC
  • TRI Colour
  • Built in 6w LED
  • 2 Years Replacement warranty
  • 2020 Catalogue Pages 113-114

Must be used with suitable 12v DC LED driver

Part Number Colour Temp Lumens
HV3006T-SS316-12V

3000k

4000k

5500k

480lm

510lm

540lm
