Name: HV9750-IP20-30-RGB - 7.2w IP20 RGB LED Strip
Brand: Havit Lighting
SKU: HV9750-IP20-30-RGB
Availability: InStock

HV9750-IP20-30-RGB - 7.2w IP20 RGB LED Strip

Description
Product Information
Data Sheet
IES Files
Install Sheet

Description

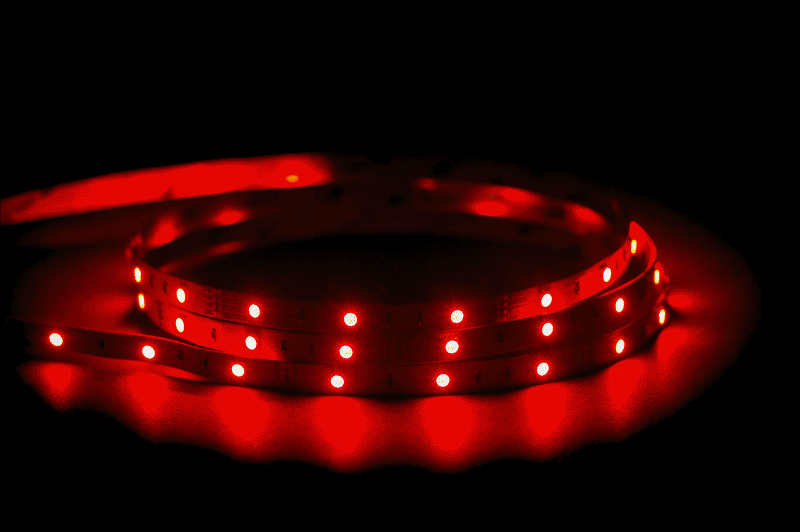

RGB LED strip
3m double side tape for easy installation
7.2w per metre
30 x 5050 LED chips per metre
585lm per metre (White)
Size: 10mm x 2mm
Cutting increments: 100mm
Input voltage: 12v DC
IP rating: IP20
Supplied in either Custom Cut Length or 30m Roll
Maximum length: 5 metres
3 Years replacement warranty (items ordered after 01/01/22)

Click here to view compatible Controllers

Must be installed on aluminium heat dissipating surface for warranty purposes.

Product Information

Part Number	Length
HV9750-IP20-30-RGB	Custom Length - Per Metre
HV9750-IP20-30-RGB-30M	30m Roll

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
